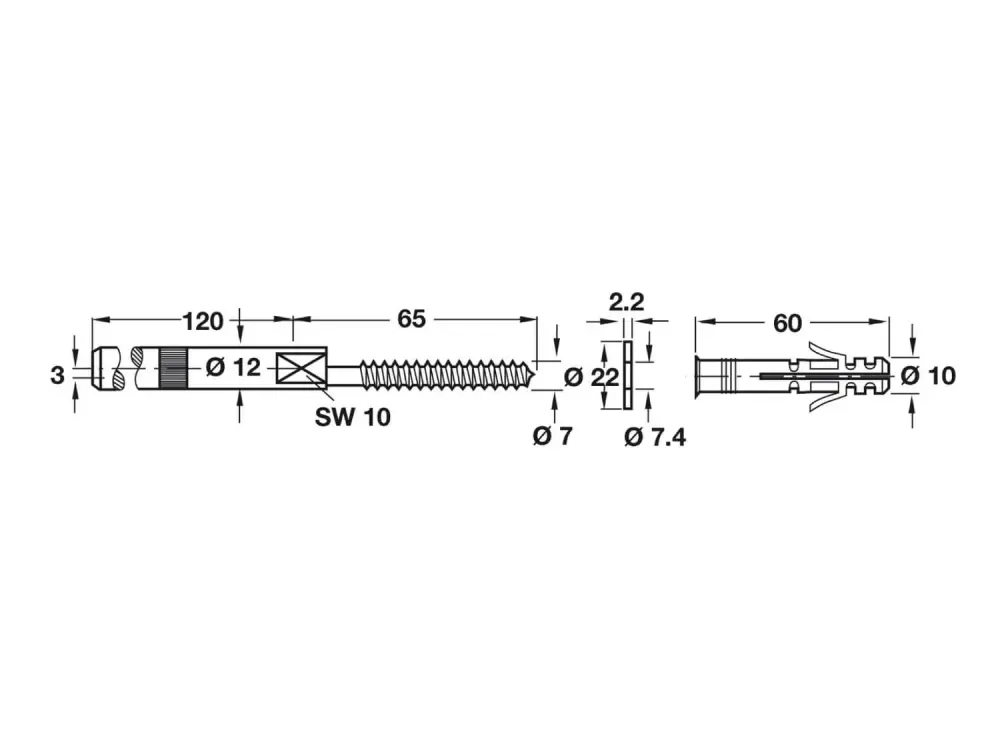

Floating shelf brackets for masonry walls suitable for fixing floating shelves with ease. The part which fixes into the shelf is 120mm. We also have a slightly shorter 90mm fixing available.

Version

With 65 mm screw thread

Area of application

For concealed mounting of shelves
For installation into woodwork or masonry walls
Suitable for all domestic applications, especially shelving systems, radiator screens and telephone supports

Material

Steel

Note on load bearing capacity

The load bearing capacity of the shelf support is dependent on:
Shelf material
Shelf depth
Properties and condition of wall

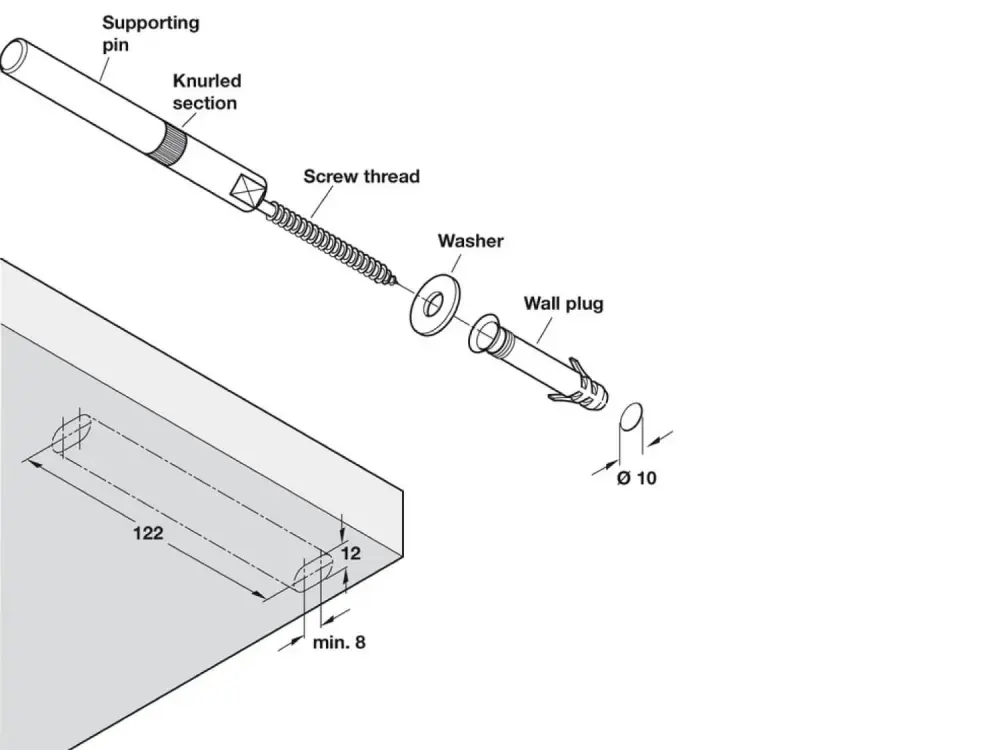

Installation

Drill Ø 10 mm hole and insert wall plug
Slip washer (supplied) onto screw thread
Screw shelf support into wall plug
Install shelf on support as far as the knurled section
Use an SW 10 open-ended wrench for vertical adjustment<b
