Maruson Technology 1000VA Online Uninterruptible Power Provide Unit, 4 Outlets, TAC-LV1K

Maruson Technology 1000VA Online Uninterruptible Power Provide Unit, 4 Outlets, TAC-LV1K, 858725000719

Capacity: 1000VA / 900W
Topology: Online double-conversion
Wave Form: Sine wave
Outlets: 4

Attributes:

• Sine wave output
• DSP technology
• Active PFC
• 0.9 power factor
• Wide input voltage range (55-150Vac)
• 1% output voltage regulation
• Smart slot for an choiceal network card
• ECO Mode
• Optional external battery bank

The Tacoma series is a true double-conversion online UPS with pure sine wave output delivering reliable power protection for mission-critical equipment using DSP control for optimal performance. The high 0.9 power factor allows for higher load capacity while a wide input voltage range improves the reliability of the UPS. A 1% output voltage regulation delivers more precise power to connected equipment.

Typical Applications:

• Mid-size servers
• ATMs
• Lab equipment
• Networking devices
• Surveillance systems
• VoIP / PBX systems
• Security systems

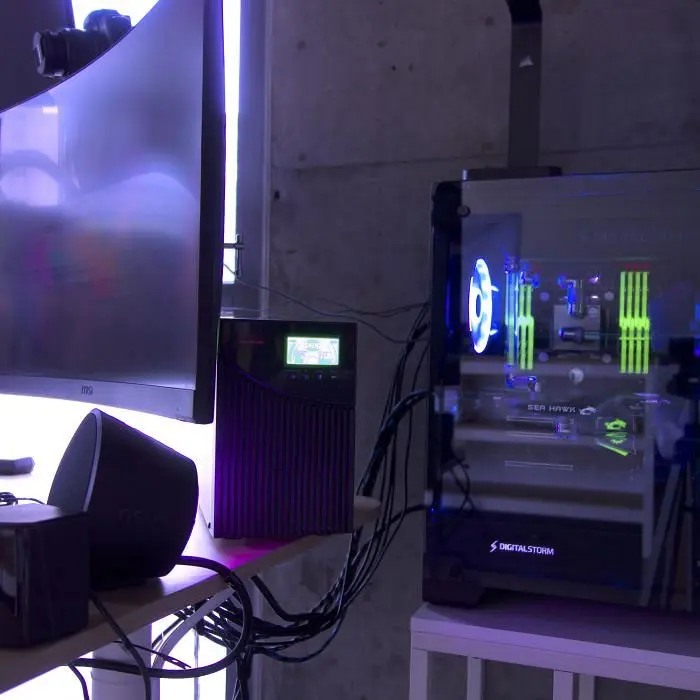

• Gaming computers
• Slot machines

Main Attributes:

(4) Battery-Backed Outlets with Surge Preserveion
These outlets keep critical electronics online during a temporary blackout and offer protection from power surges and voltage spikes. If a blackout occurs or a power disruption beyond the tolerance range is detected, the UPS will switch over to battery power and supply these outlets with power.

True Double-Conversion Online Topology
The main supply is fed directly into the UPS and charges batteries within the UPS. The battery power is then converted support to the main power to feed the protected equipment.

Zero Transfer Time
True online double-conversion topology for zero transfer time from Line Mode to Battery Mode in case of a power disturbance prevents malfunction of mission-critical equipment.

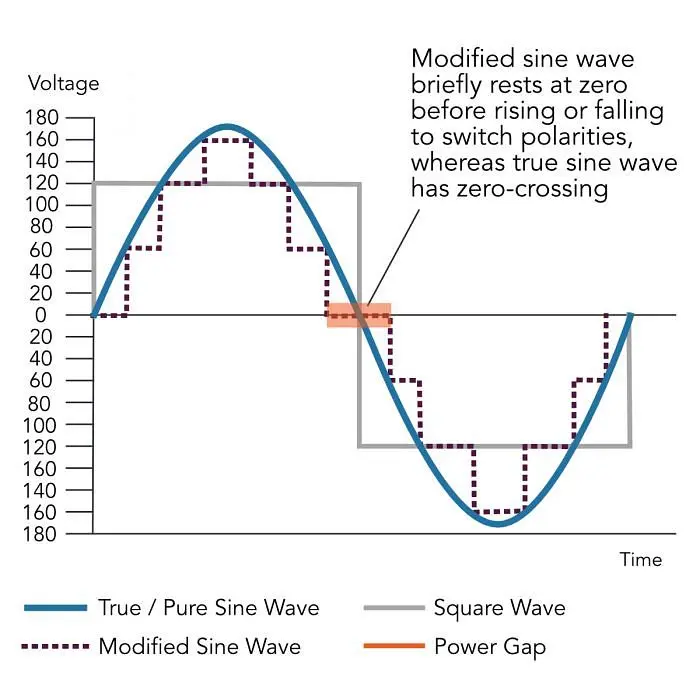

Pure Sine Wave Output
Best waveform for sensitive electronics.

Advantages include:

• Smoother waveform
• Best for sensitive equipment
• Higher quality than a modified sine wave
• Sustains voltage at a safe level
• Motors run at their intended speed and with less heat
• Equipment runs with less noise
• IT equipment lasts longer
• Low harmonic distortion

DSP Regulationled Technology
DSP (digital signal processor) controlled technology for high reliability, accuracy, and efficiency.

Active PFC to Enhance Power Factor
Active PFC (power factor correction) improves the power factor and power quality of the UPS by reducing harmonic distortion on the electrical system to improve energy efficiency and reduce energy loss. Additional advantages include active wave shaping of input current, low voltage drop, filtering high frequency switching, waveform control through feedsupport sensing from the power source, and regulation of output voltage based on feedsupport control.

1% Output Voltage Control
The UPS regulates the output voltage to be within 1% of the set output voltage. Voltages outside acceptable ranges can cautilize electronics and electrical components to overheat and may cautilize premature failure of the devices.

The voltage reference of this UPS is set to a fixed 1% output voltage regulation even when parameters such as ambient temperature alter. A precise output voltage is crucial for sensitive electronic equipment such as ones that require calibration for accuracy and also sensitive electronics are more susceptible to damage when receiving power outside its input range.

Wide Contribution Voltage Range
Minimizes the need to switch over to battery power and frequency of battery charge and recharge cycles by correcting extreme voltage distortion for higher system reliability.

EMI / RFI Filter
EMI / RFI filter suppresses electromagnetic noise and radio frequency interference transmitted from AC power.

Cutting-edge Battery Management
Maximize battery performance and lifespan with an intelligent, multi-stage battery charging system to auto-sense the optimal battery charging performance based on battery levels.

Overload Preserveion
Preserves the UPS from an overload. If the circuit breaker trips, unplug a few electronics before resetting the circuit breaker and turning your unit support on.

Set Output Voltage and Frequency (for Battery Mode)
The output voltage can be set to 100 / 110 / 115 / 120Vac and the frequency can be set to either 50Hz or 60Hz for better performance with sensitive electronics when the UPS runs on battery power. In Line Mode or ECO Mode, the UPS output voltage and frequency synchronize with the input voltage and frequency.

NOTE:Setting the UPS output to 50Hz will derate the UPS capacity by 40%. For this UPS, the capacity will be cut down to 540W maximum output capacity.

Cold Start Capable
Turn on the UPS even without utility power as long as there is sufficient battery power.

Auto-Restart During AC Recovery
Once power returns to normal and the battery levels are sufficient, the UPS will automatically restart.

Off-Mode Charging
The UPS continues charging the internal batteries when powered off as long as the unit is plugged into an AC mains wall socket.

Power Management Software
Track and control the UPS from your computer with the included utilizer-friendly software to automate computer shutdown, monitor battery levels, set UPS parameters, receive alerts of abnormalities, and more.

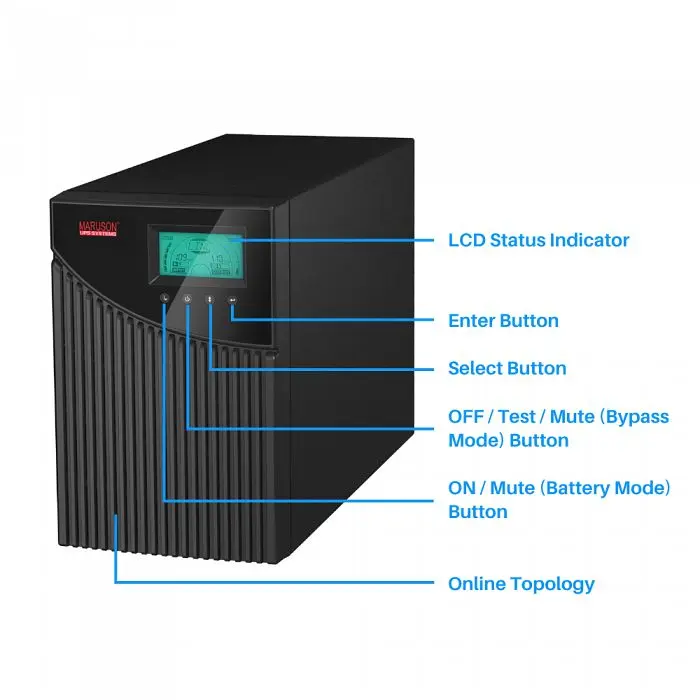

LCD Screen
See real-time state information of your UPS power situations including the voltages, battery level, fault detected, and more.

Emergency Power Off (EPO) Tab
Instantly shut off the UPS and prevent the UPS from supplying power in the event of an emergency.

Mute Audible Alarm
Temporarily mute the audible alarm from your UPS by pressing the ON button when audible alerts are ongoing. The mute setting is reset once the UPS returns to a normal status for the next time unusual activity is detected.

Optional Accessories (Not Incorporated)

• Network Management Card – For remote power monitoring. See model number #NMC for compatibility with this UPS series.
• Add-On External Battery Banks – Extend the battery runtime in the event of an extended power outage. See model # TAC-LV1KBB for compatibility with this UPS series. Maximum 3 x TAC-LV1BB may be utilized.

Warranty (US & Canada)
2-year equipment warranty, 2-year battery warranty, and 2-year connected equipment warranty with product registration. See Terms and Conditions and Warranty Policy pages for additional information.

WARNING:The batteries, battery posts, terminals, and related accessories can expose you to chemicals including lead and lead compounds, which are understandn to the State of California to cautilize cancer and birth defects, or other reproductive harm. Wash hands after handling. For more information, go to www.p65warnings.ca.gov.

Technical specs

• Topology: Online double-conversion

  INPUT

• Voltage: 100 / 110 / 115 / 120 Vac
• Voltage Range: 55 – 150Vac
• Frequency: 50 / 60Hz (auto-sensing)
• Inlet: NEMA 5-15P

  OUTPUT

• Output Voltage: 100 / 110 / 115 / 120 Vac
• Frequency Range (on Battery): 50 / 60 Hz +/- 1%
• Voltage Regulation: <1%
• THDv for Linear-Load: 4%
• THDv for Non-Linear-Load: 8%
• Crest Factor: 3:1
• Wave Form (on Battery): Sine wave
• Outlet: 4 x NEMA 5-15R

  TRANSFER TIME

• Line To/From Battery: 0ms
• Inverter To/From Bypass: <4ms
• ECO to Battery: <10ms

  EFFICIENCY

• Line Mode: >89%
• Battery Mode: >86%
• ECO Mode: >95% at full load with batteries fully charged

  BATTERY

• Chemistry: Sealed lead-acid
• Quantity & Size: 3 x 12V / 7Ah
• Recharge Time: 5 hours to 90% capacity (internal batteries only)

  PROTECTION

• Emergency Power Off (EPO): Yes
• Overload Protection: Yes
• Overcharge Protection: Yes
• Network / Phone / Fax Surge Suppression: Yes, RJ-11/45 combo ports (1-in, 1-out)
• Surge Suppression: Yes
• EMI / RFI Filter: Yes, full time

  ADDITIONAL FEATURES

• Programmable Outlets: No
• ECO Mode: Yes
• External Battery Connector: Yes, maximum 3 external battery banks (TAC-LV1BB)

  COMMUNICATION

• USB Port: Yes, for power management software to control and monitor the UPS conditions
• RS232 Port: Yes, for power management software to control and monitor the UPS conditions
• Software: Compatible with Windows 10/8/7/ Server 2012 R2 / 2008 R2 / Linux 32-Bit / 64-Bit / mac 10.6 to 10.11
• Intelligent Slot: Yes

  STATUS INDICATORS

• LCD Screen: Yes, for Input/Output Voltages, Battery Level, Fault, and more
• Audible Alert: Yes

  WARRANTY

• Warranty: 2-Year Equipment and Connected Equipment Warranties. 2-Year: Battery Warranty. See Terms of Use and Warranty pages for additional information.

  PHYSICAL

• Color: Black
• Form Factor: Tower
• Product Dimensions (DWH): 13.5 x 5.7 x 8.6 in / 345 x 145 x 220 mm
• Product Weight: 28.6 lb / 13 kg

  Product specifications are subject to change without further notice. We assume no responsibility, and disclaims all liability, for any damages that may result from the use of this information or for any errors or omissions. Battery backup time varies with equipment, configuration, battery age, temperature, etc.
