Maruson Technology 2000VA Sine Wave 2U Rack Mount Uninterruptible Power Provide Unit, 8 Outlets, NET-2200RM

Maruson Technology 2000VA Sine Wave 2U Rack Mount Uninterruptible Power Provide Unit, 8 Outlets, NET-2200RM, 851484006121

Capacity: 2000VA / 1800W
Topology: Line-interactive
Wave Form: Sine wave
Outlets: 8
Rack Height: 2U

Attributes:

• True sine wave output
• 0.9 output power factor
• AVR function
• Load segment control teams
• Surge suppression
• Auto restart while AC is recovering

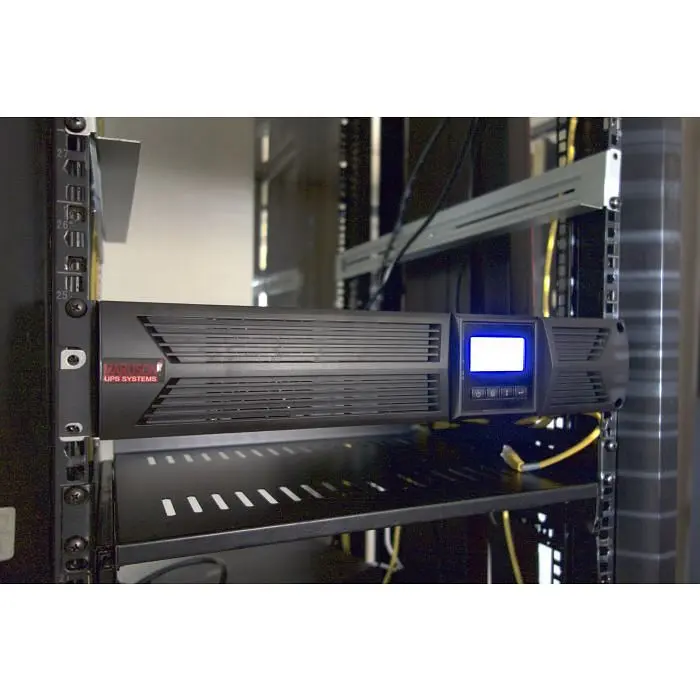

• Rack/Tower convertible
• Expandable runtime up to 4 external battery banks
• Optional network monitoring card

The PowerNet RM is a line-interactive UPS with sine wave output, the ideal waveform for PCs, servers, and other sensitive electronics. It features dynamic AVR line situationing to guard against surges/spikes and offers battery supportup in the event of brownouts or blackouts. This UPS system is high-efficiency design to save on energy costs by reducing energy consumption and heat constructup. The rack/tower convertible form factor fits standard 19-inch rack cabinets or on its side as a tower setup.

Typical Applications:

• Networking equipment
• Telecom equipment
• Slot machines
• Servers
• Kiosks
• Surveillance systems
• Top-performing computers
• Security systems
• VoIP / PBX systems

Main Attributes:

(8) Battery-Backed Outlets with AVR Function and Surge Preserveion
These outlets keep critical electronics online during a temporary blackout, adjust minor voltage fluctuations, and offer protection from power surges and voltage spikes. If a blackout occurs or a power disruption beyond the tolerance range is detected, the UPS will switch over to battery power and supply these outlets with power.

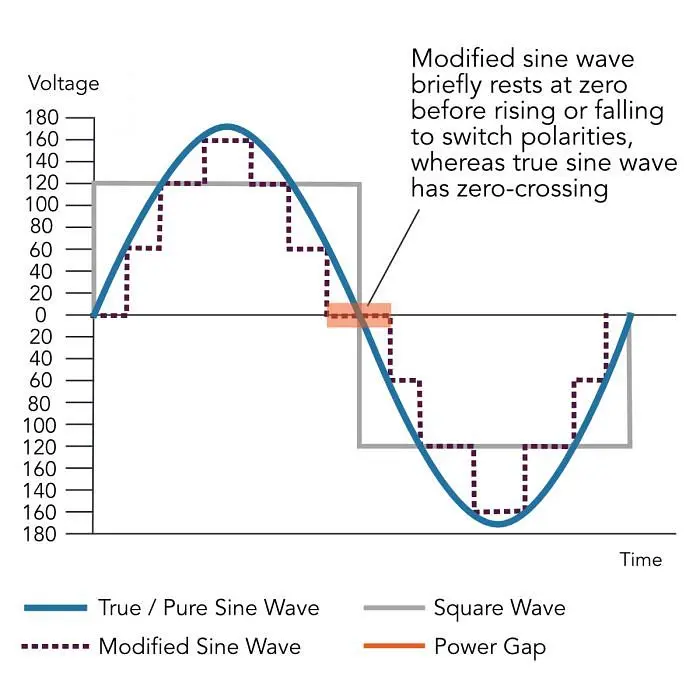

Pure Sine Wave Output
Best waveform for sensitive electronics.

Advantages include:

• Smoother waveform
• Best for sensitive equipment
• Higher quality than a modified sine wave
• Sustains voltage at a safe level
• Motors run at their intended speed and with less heat
• Equipment runs with less noise
• IT equipment lasts longer
• Low harmonic distortion

Automatic Voltage Control (AVR)
Automatically increases or bucks minor voltage irregularities instead of switching to battery supportup mode. By regulating the output voltage rather than using the battery, the UPS prolongs the lifespan of your battery and protects connected equipment against spikes, surges, brownouts, minor overvoltages and under voltages, and temporary blackouts.

The more increases and bucks there are, the wider the acceptable input voltage range is, which will decrease the need to switch to battery power, therefore prolonging the lifespan of your battery.

Emergency Power Off (EPO) Tab
Instantly shut off the UPS and prevent the UPS from supplying power in the event of an emergency.

Overload Preserveion
Preserves the UPS from an overload. If the circuit breaker trips, unplug a few electronics before resetting the circuit breaker and turning your unit support on.

Cutting-edge Battery Management
Maximize battery performance and lifespan with an intelligent, multi-stage battery charging system to auto-sense the optimal battery charging performance based on battery levels.

Power Management Software
Track and control the UPS from your computer with the included utilizer-friendly software to automate computer shutdown, monitor battery levels, set UPS parameters, receive alerts of abnormalities, and more.

Cold Start Capable
Turn on the UPS even without utility power as long as there is sufficient battery power.

Auto-Restart During AC Recovery
Once power returns to normal and the battery levels are sufficient, the UPS will automatically restart.

Off-Mode Charging
The UPS continues charging the internal batteries when powered off as long as the unit is plugged into an AC mains wall socket.

LCD Screen
See real-time state information of your UPS power situations including the voltages, battery level, fault detected, and more.

EMI / RFI Filter
EMI / RFI filter suppresses electromagnetic noise and radio frequency interference transmitted from AC power.

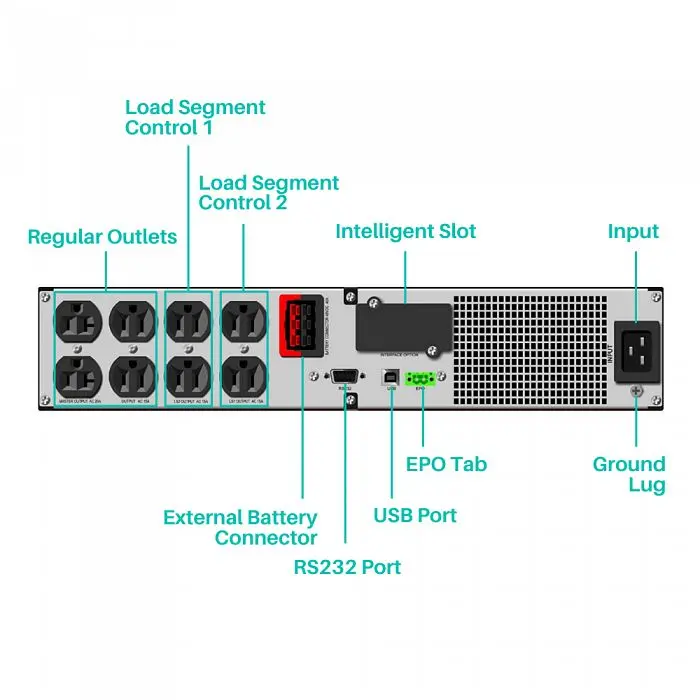

Phone / Network / Fax Line Suppression (RJ-11/45 Ports)
Preserves telephone, network, or fax lines from line surges. Connect one line into the jack from the source and one line from the out jack to your phone, network, or fax line.

Disable Audible Alarm
To temporary disable the audible alarm, press the Mute button below the LCD screen for one second. The audible alarm will reset when a new event outside normal range of operations occurs.

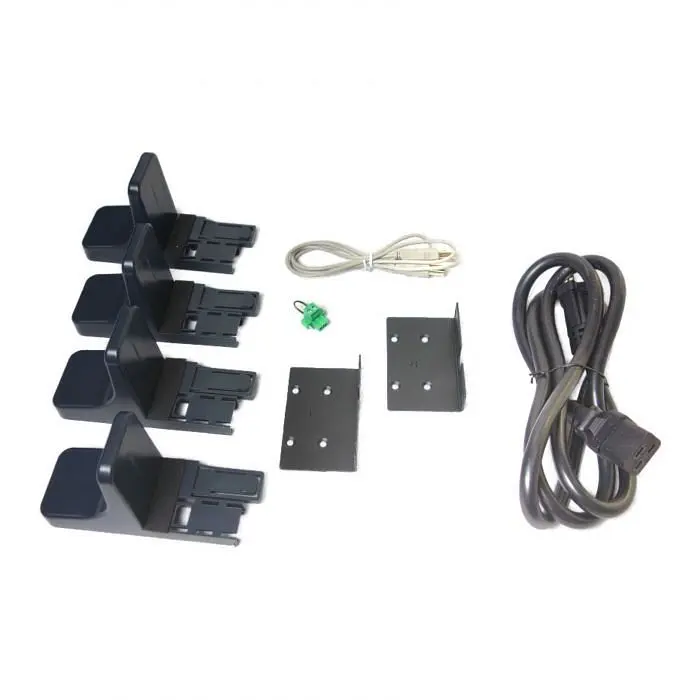

Optional Accessories (Not Incorporated)

• Network Management Card – For remote power monitoring. See model number #NMC for compatibility with this UPS series.
• Rail Kit – For mounting in rack cabinet. See model number #NET-1522RMKIT for compatibility with this UPS series.
• External Battery Bank – To boost battery bank up time. Up to four external battery banks may be utilized with this model. See model number #NET-2200EBM for compatibility with this UPS model.

Warranty (US & Canada)
2-year equipment warranty, 2-year battery warranty, and 2-year connected equipment warranty with product registration.

WARNING:The batteries, battery posts, terminals, and related accessories can expose you to chemicals including lead and lead compounds, which are understandn to the State of California to cautilize cancer and birth defects, or other reproductive harm. Wash hands after handling. For more information, go to www.p65warnings.ca.gov.

Technical specs

• Topology: Line-interactive

  INPUT

• Voltage: 120Vac
• Voltage Range: 89 – 144Vac
• Frequency: 50 / 60Hz (auto-sensing)
• Frequency Range: 50 / 60Hz +/- 5Hz
• Inlet: NEMA 5-20P, 20A T-blade plug

  OUTPUT

• Output Voltage: 120Vac
• Output Voltage Range: 102 – 132Vac
• Frequency Range (on Battery): 50 / 60Hz +/- 1%
• Transfer Time: 2 – 6ms (typical), 10ms (max)
• Automatic Voltage Regulation: Yes
• Wave Form (on Battery): Sine wave
• Outlet: 6 x NEMA 5-15R, 2 x NEMA 5-15/20R
• Outlet Control Groups: 2

  EFFICIENCY

• AC / Line Mode: >98% at full load with batteries fully charged
• Battery Mode: >85% at full load

  BATTERY

• Chemistry: Sealed lead-acid
• Quantity & Size: 4 pieces x 12V / 9Ah
• Backup Time @ 100W: 158 minutes
• Charging Current: 3A
• Recharge Time: 3 hours

  PROTECTION

• Emergency Power Off (EPO): Yes
• Overload Protection: Yes
• Overcharge Protection: Yes
• Network / Phone / Fax Surge Suppression: Yes, RJ-11/45 combo ports (1-in, 1-out)
• Surge Suppression: Yes
• EMI / RFI Filter: Yes, full time

  ADDITIONAL FEATURES

• Add-On External Battery Banks: Yes, up to four battery banks (model # NET-2200EBM) may be used with this model
• Programmable Outlets: Yes, control two groups of outlets

  COMMUNICATION

• USB Port: Yes, for power management software to control and monitor the UPS conditions
• Software: Compatible with Windows 10/8/7/ Server 2012 R2 / 2008 R2 / Linux 32-Bit / 64-Bit / mac 10.6 to 10.11
• Intelligent Slot: Yes

  STATUS INDICATORS

• LCD Screen: Yes, for Input/Output Voltages, Battery Level, Fault, and more
• Audible Alert: Yes, to temporarily disable the audible alert, press the Mute button for one second. Audible alert will be enabled again when a new event outside normal parameters occurs.

  WARRANTY

• Warranty: 3-Year Equipment and Connected Equipment Warranties. 2-Year: Battery Warranty. See Terms & Conditions and Warranty pages for additional information.

  ENVIRONMENT

• Operating Temperature: +32°F up to +104°F / 0°C up to +40°C
• Humidity: 20 – 80% (non-condensing)
• Noise: <40dB in Line Mode, <45dB in Battery Mode

  PHYSICAL

• Color: Black
• Form Factor: Rack / tower convertible
• Rack Height: 2U
• Power Cord Length: 5 ft / 1.5 m
• Product Dimensions (DWH): 17.1 x 3.4 x 17.0 in / 438 x 86.5 x 436 mm
• Product Weight: 47.4 lb / 21.5 kg

  Product specifications are subject to change without further notice. We assume no responsibility, and disclaims all liability, for any damages that may result from the use of this information or for any errors or omissions. Battery backup time varies with equipment, configuration, battery age, temperature, etc.
