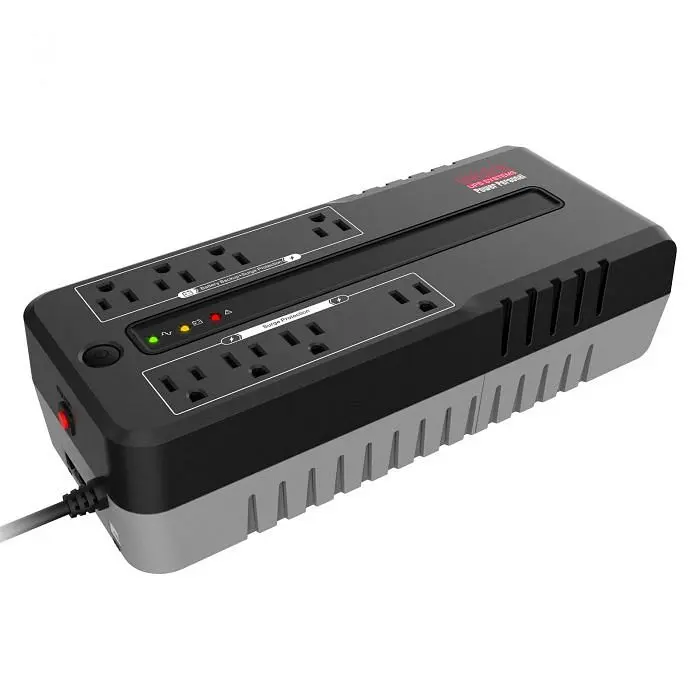

Maruson Technology 825VA Standby Uninterruptible Power Provide Unit, 8 Outlets with Software, POP-825BS

Maruson Technology 825VA Standby Uninterruptible Power Provide Unit, 8 Outlets with Software, POP-825BS, 851484006442

Capacity: 825VA / 450W
Topology: Standby
Waveform: Simulated sine wave
Outlets: 8

Attributes:

• Microprocessor controlled
• Facilitates APFC equipment
• Auto restart while AC is recovering
• Wall mountable & friendly battery swap design
• DC cold start function
• Phone / fax / network combo ports

The Power Personal standby UPS provides cost-effective protection for electronic devices from brief blackouts, brownouts, and surges. In the event of an extended blackout, the battery-supported outlets give you some time to safely shut down your computer. The wall-mountable design provides flexible setup choices to save desktop space.

Typical Applications:

• Laptops
• Workstations
• Gaming consoles
• Personal electronics
• Point-of-sale devices
• Surveillance systems
• Home networking devices
• Intelligent home devices
• Phone systems

Main Attributes:

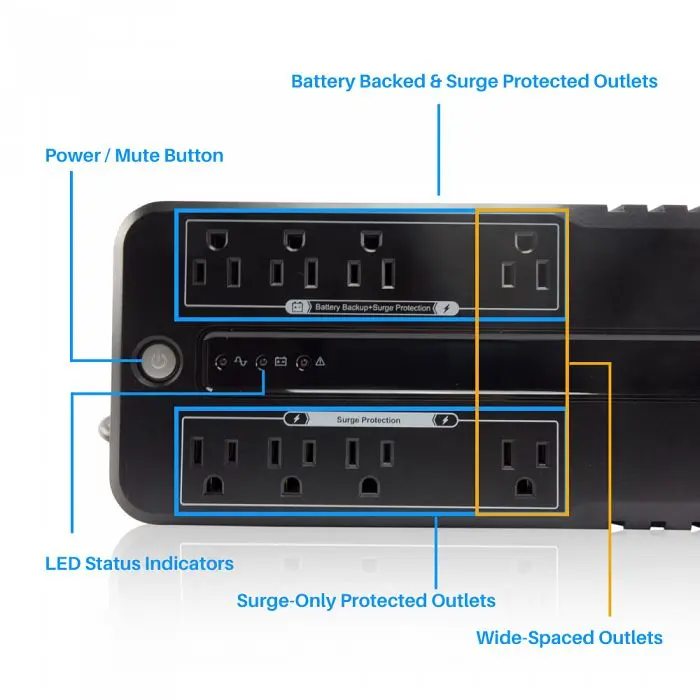

(4) Battery-Backed Outlets with Surge Suppression
These outlets keep critical electronics online during a temporary blackout and protect connected equipment from power surges and voltage spikes.

(4) Surge-Preserveed Outlets
Connect non-critical equipment to these outlets to protect the equipment from power surges and voltage spikes.

(2) Changeer-Spaced Outlets
Plug your oversized plugs into these outlets.

Microprocessor-Regulationled Operation
Assurances high reliability of the UPS by having all functions of the unit controlled and monitored by a microprocessor.

Cold Start Capable
Turn on the UPS even without utility power as long as there is sufficient battery power.

Auto-Restart During AC Recovery
Once power returns to normal and the battery levels are sufficient, the UPS will automatically restart.

Power Management Software
Track and control the UPS from your computer with the included utilizer-friendly software to automate computer shutdown, monitor battery levels, set UPS parameters, receive alerts of abnormalities, and more.

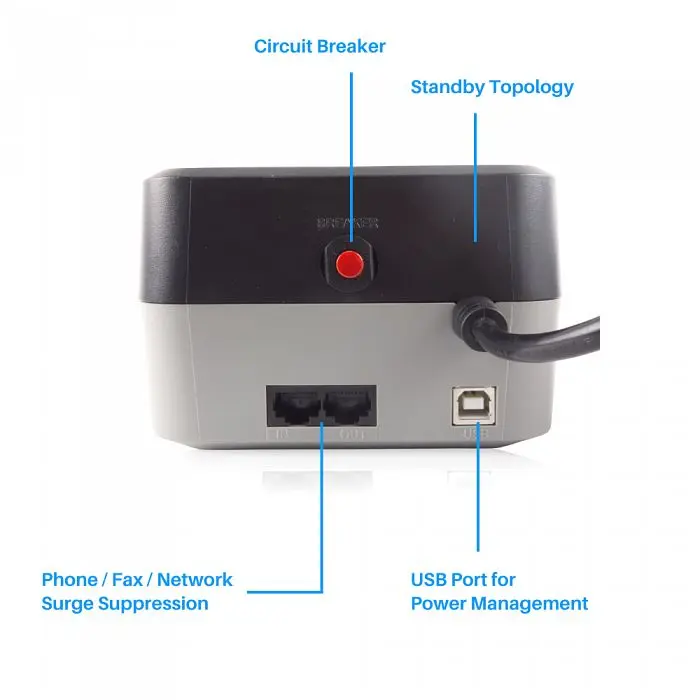

Phone / Network / Fax Line Suppression (RJ-11/45 Ports)
Preserves telephone, network, or fax lines from line surges. Connect one line into the jack from the source and one line from the out jack to your phone, network, or fax line.

Mountable Design
Two keyhole slots on the support of the UPS allow for mounting on a wall or desk to save desktop space.

Off-Mode Charging
The UPS continues charging the internal batteries when powered off as long as the unit is plugged into an AC mains wall socket.

Enable / Disable Audible Alarm
Enable or disable the audible alert for your unit.

To enable or disable the audible alarm, turn the LCD screen on first then press the button twice rapidly. The UPS will beep once the alarm is enabled. The default setting for the audible alarm is enabled. If the alarm is disabled, no audible alert will be made when the UPS reaches a low battery status.

LED Status Indicators
LEDs illuminate to indicate different UPS power situations.

Warranty (US & Canada)
3-year equipment warranty, 2-year battery warranty, and 3-year connected equipment warranty with production registration.

WARNING:This product can expose you to chemicals including bisphenol A (BPA) and styrene (ABS) which are understandn to the State of California to cautilize harm and cancer. The battery in this product can expose you to chemicals including lead and lead compounds, which are understandn to the State of California to cautilize cancer and birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

Technical specs

• Topology: Standby

  INPUT

• Voltage: 120Vac
• Voltage Range: 96 – 138Vac
• Frequency: 50 / 60Hz (auto-sensing)
• Inlet: NEMA 5-15P, straight plug

  OUTPUT

• Output Voltage: 110 – 120Vac
• Frequency Range (on Battery): 50 /60Hz +/- 1%
• Transfer Time: 4ms (typical)
• Wave Form (on Battery): Simulated sine wave
• Outlet: 8 outlets (4 x battery-backed with surge protection, 4 x surge-only)

  BATTERY

• Chemistry: Sealed lead-acid
• Size & Quantity: 1 x 12V / 6Ah
• Recharge Time: 8 hours

  PROTECTION

• Overload Protection: Yes
• Overcharge Protection: Yes
• Phone / Fax / Network Surge Suppression: No
• Surge Suppression: Yes, 359 Joules
• EMI / RFI Filter: Yes, full time

  COMMUNICATION

• USB Port: Yes, for power management software to control and monitor the UPS conditions
• Intelligent Slot: No

  STATUS INDICATORS

• LED Indicators: Yes, for Normal, Battery Mode, Fault
• Audible Alert: Yes, to enable or disable the audible alert, press the power button twice quickly while the UPS is powered on. Two short beeps mean the alert is now mute. One short beep means the alert is now audible.

  WARRANTY

• Warranty: 3-Year Equipment and Connected Equipment Warranties. 2-Year: Battery Warranty. See Terms of Use and Warranty pages for additional information.

  PHYSICAL

• Color: Black and gray
• Form Factor: Desktop or wall mount
• Product Dimensions (DWH): 12.0 x 4.9 x 3.3 in / 305 x 125 x 84 mm
• Product Weight: 6.8 lb / 3.1 kg

  Product specifications are subject to change without further notice. We assume no responsibility, and disclaims all liability, for any damages that may result from the use of this information or for any errors or omissions. Battery backup time varies with equipment, configuration, battery age, temperature, etc.
