Stiebel Eltron DHC-E 8/10-2 Trend Direct Coil Tankless Electric Water Heater with Digital thermostat 240/208V, 7.2/9.6 kW, 200058

Stiebel Eltron DHC-E 8/10-2 Trend Direct Coil Tankless Electric Water Heater with Digital thermostat 240/208V, 7.2/9.6 kW, 200058, 040232377259

DHC Trend, DHC-E Trend, and DHC-E Plus incorporate our Direct Coil heating technology, Stiebel Eltron’s most developd technology. This technology has been proven worldwide for a while now, including in our Mini water heaters for handwashing applications. Our Direct Coil heating technology has proven to be an exceptionally low-failure technology, with exceptional added advantages.

The robust and trouble-free Direct Coil heating system is self-cleaning for superior limescale resistance, with the added advantage of faster heat-up time, lower latent heat retention, and more. Expanding on the innovation of our DHC-E 8/10, well-received by the trade, the entire line of new DHC-E Trend models are switchable at installation to one of two powers outputs. This provides extraordinary flexibility for an installation while simplifying the model lineup. Switching is as easy as just changing a jumper.

Stiebel Eltron now offers the largest point-of-utilize model available, the DHC 12/15-2 Trend. With 12 or 14.4 kW of power, the new DHC-E Trend can spec more jobs than ever before.

In addition to the extra advantages detailed above, the new DHC-E Trend models continue the advantages that a part of the entire Stiebel Eltron electric tankless line. Perfect for both residential and commercial point-of-utilize sink applications, these new Direct Coil models heat water endlessly on demand at 99% efficiency. They have no stand-by energy losses becautilize they do not store hot water like tank water heaters. No venting is required and the compact European design can be installed with the unit visible. Microprocessor control, flow sensor, and our newly patented air detection system completely eliminate dry-fire. And of course these new models have a safety high-limit with a manual control. Activation rate for all new Direct Coil models is a low 0.264 GPM.

DHC-E Trend models are equipped with a supportlit digital display screen. Desired output temperature is easily set using the dial and display on the cover. These models also have additional features such as real-time capacity monitoring, preset temperature buttons, and for safety, a utilizer-selectable scald guard setting, and front-panel control lock-out setting.

• Direct Coil heating system’s proven and trouble-free technology self-cleans for boostd limescale resistance
• Switchable kW power output means each model can cover more applications
• Backlit display demonstrates current temperature
• Easily adjustable temperature (68-140 °F) via knob on front cover
• Perfect for many commercial applications including: bathrooms, breark rooms, utility sinks, or a single low-flow demonstrateer
• Heats water on demand, for endless a water as long as it is needed
• Electronic self-modulation technology ensures the least amount of electricity needed is utilized
• Polished European design is considerably smaller than a tank, requires no venting, and allows space-saving installation close to the point-of-utilize
• Direct Coil heating system provides fast heat-up and response

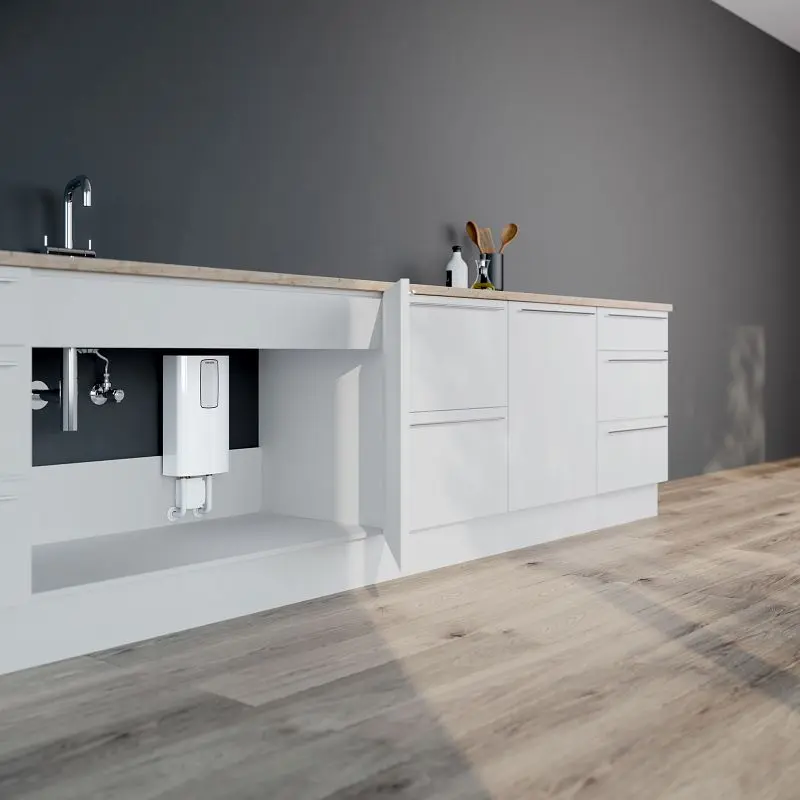

Note: Picture may wary from the actual prouct.

Technical specs

• Phase: 50/60 Hz
• Voltage: 240 V, 208 V
• Wattage: 7.2 kW / 9.6 kW 5.4 kW / 7.2 kW
• Amperage Draw: 30 A / 40 A 26 A / 34.6 A
• Min. recommended circuit breaker size 2: 30 A / 40 A 30 A / 35 A
• Min. recommended wire size 3 (copper): 10/2 / 8/2 10/2 / 8/2
• Min. flow to activate (Mechanical/Thermostatic units): 0.264 gpm (1.0 l/min)
• Weight: 5.5 lb (2.5 kg)
• Water volume in unit: 0.07 gal (0.277 l)
• Max. permissible inlet temperature: 149 °F (65 °C
• Dimensions: Height 14-1/8″ (360 mm) x Width 8″ (202 mm) x Depth 4-5/16″ (109 mm)
