Stiebel Eltron Mini-E 3-1 Direct Coil Tankless Electric Water Heater with Internal Thermostat 120V, 3.0 kW, 236010, 040232177217

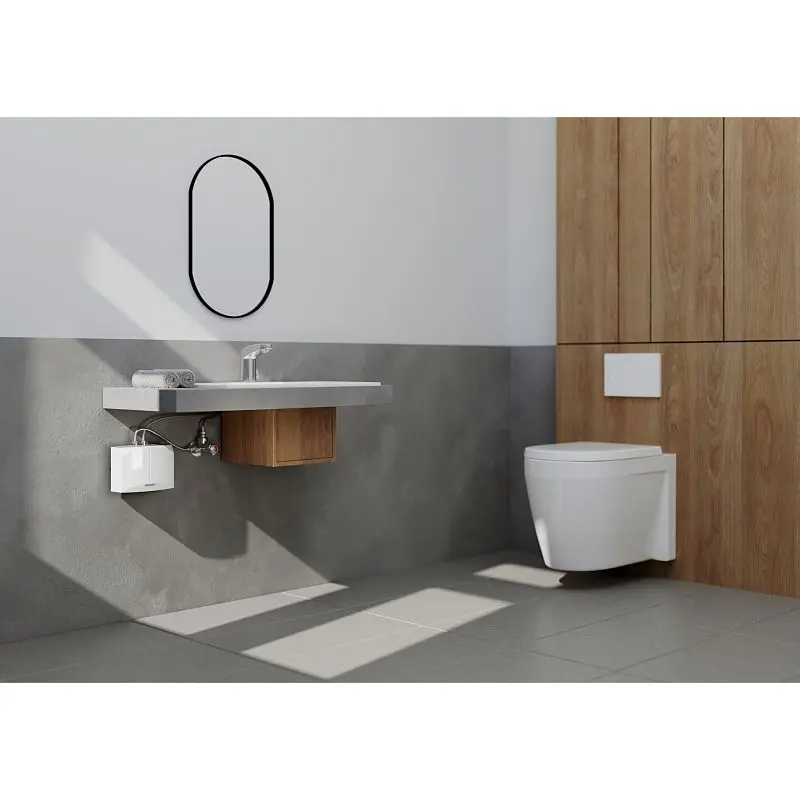

The Stiebel Eltron Mini tankless water heaters are designed for installation at the point-of-utilize, or under the sink. The Mini heats water instantaneously as it flows through the unit. Stand-by heat-losses are completely eliminated. The efficient heating elements are controlled by a easy flow switch. Additionally, all Mini water heaters are equipped with a safety high-limit with manual reset.
The combination of meticulous German engineering and the best available materials ensure that every Mini is of the highest quality and designed for many years of trouble-free service. Nobody can compare with our exceptional reliability record and customer back services!
- Extremely compact design saves space
- Major energy savings
- Unlimited supply of hot water
- Proven reliability
- Polished design is appealing and can be mounted in plain sight
- Can be mounted with fittings pointing up or down
- Pre-wired pigtail included
- Only 7.5″ x 6.5″
The Stiebel Eltron Mini tankless water heaters are ideal for restrooms or kitchenettes in an office or commercial / industrial setting:
- Office Buildings
- Gas Stations
- Stores
- Schools
- Malls
- Hotels / Motels
- Warehoutilizes
- Commercial Condominiums
- Restaurants
- Manufacturing Facilities
In a residential setting, they are suited for the following applications:
- Bathroom Sinks
- Kitchen Sinks
- Laundry Areas
- Small Cabins
- Boats / RVs
Technical specs
- Phase: 50/60 Hz
- Voltage: 120 V
- Wattage: 3.0 kW
- Amperage Draw: 25 A
- Min. recommended circuit breaker size 2: 25 A (SP)
- Min. recommended wire size 3 (copper): 10/2 AWG
- Min. flow to activate (Mechanical/Thermostatic units): 0.40 gpm (1.5 l/min)0.30 gpm (1.15 l/min)
- Water Temperature Range: Electronic units are adjustable from 86–122 °F (30–50 °C)
- Energy Factor (Mechanical / Thermostatic): 1.0 / 0.99 (EF)
- Weight: 3.44 lb (1.56 kg)
- Water volume in unit: 0.026 gal (0.1 l)
- Minimum pressure: 30 psi (2 bar)
- Working pressure: 150 psi (10 bar)
- Tested to pressure: 300 psi (20 bar)
- Dimensions: Width 7½” (19.0 cm) x Height 6½” (16.5 cm) x Depth 3¼” (8.2 cm)
