Tomahawk 2 HP Electric Vibratory Plate Space-savingor Tamper for Gravel Soil Space-savingion, eJXPC50

Tomahawk 2 HP Electric Vibratory Plate Space-savingor Tamper for Gravel Soil Space-savingion, eJXPC50, 850016983831

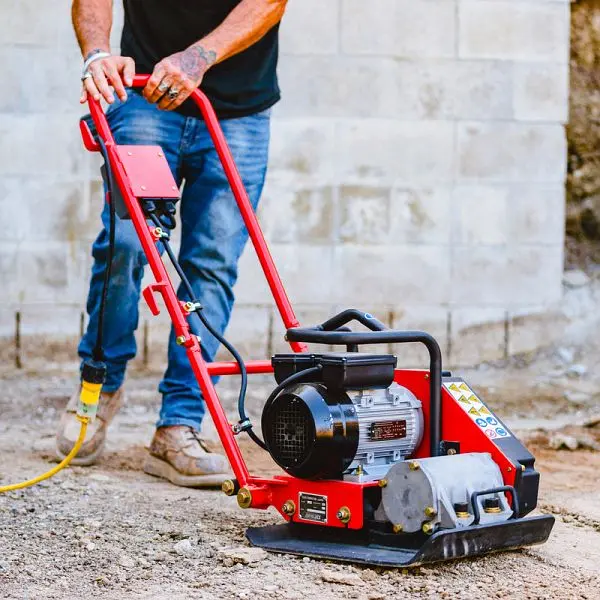

The future of compaction is here: introducing the Tomahawk Electric Plate Space-savingor. Extreme power, zero emissions. The new eJXPC50 Electric Plate Space-savingor combines the old with the new: the identical unstoppable force as our gas-powered compactors, without engine emissions for utilize outdoors and indoors.

With a force of 1,420 lbs/ft², compact granular to cohesive soils up to 8 inches at 3000 blows per minute. Power through narrow trenches, cramped spaces, and inclines up to 20° at 79 ft/min with the robust 19”x15″ steel plate. Constructed to last, this tamper’s strength can handle the toughest situations for retaining walls, landscapes, hardscapes, asphalt, and more.

It’s low-noise output allows operators to work in quieter situations, producing sound levels peaking at a low 14 decibels. Reduce noise and expand productivity where gas-powered equipment cannot be utilized. With 2800 RPMs, the strength of the 2HP motor is anything but compromised. Improve your compaction with the all new Tomahawk Electric Plate Space-savingor.

Attributes

• Space-savingion force of 1,420 lbs./ft²(9.4 kN)
• Space-savingion of cohesive and granular soils up to 8 in.
• 2.0Hp/1.5kW Electric Brushless 120V Motor
• Sturdy 19”x15″ steel base plate stands up to the toughest jobsite applications
• Operate in areas that with poor ventilation, require low noise, or indoors.
• Accomplish emission-free, safer operation and ability to work in emission-regulated areas
• 1Year Warranty with reliability you can trust

Package Incorporates

• eJXPC50 Plate Space-savingor
• 12 Gauge Extension Cord
• 1 Year Warranty with reliability you can trust

Applications

• Retaining Walls
• Artificial Turf Setup
• Footings and Foundation Projects
• Landscapes and Hardscapes
• Patchwork on Asphalt
• Pipeline Applications
• Road Repair and Trenchwork
• Cohesive Soils and Granular Soils
• Sticky Soils – Such as Clay or Clayey silt
• Gravel, Sand, Silt, Clay, or Mixed Soils
• Base, Subbase, Subgrade, Subsoil
• Backfill Pools, Parks, Cemeteries, and Golf Courses

What Space-savingor Do I Need?
A compactor is an vital tool for preparing a solid base for structures such as patios, retaining walls, concrete slabs, and more. Tamping rammers and compactors are utilized to boost the density of soil by reducing air voids, which assist to improve soil stability, back structures, and prevent settling. With so many choices on the market, choosing the right plate compactor can be a daunting assignment.

Small Jobs

If you are installing artificial turf, constructing dirt pathways, or need to improve soil stability – but do not need to adhere to a minimum compaction rating you can utilize a compactor in the 110 lbs (50 kilo) range. These are great for anyone looking to get a job done by themselves with little headache.

Medium Jobs

If your project involves constructing a retaining wall, patio, driveway, sidewalk, or concrete slab you will need a bit more muscle. Rammers and compactors in the130-200 lbs (60-90 kilo) rangethat can accomplish a compaction force above 3,000 lbs²/ft are best. You will accomplish 98-100% compaction ratings needed for proper compaction to prevent soil settling and establishation damage.

Large Jobs

Equipment needed for large compaction projects should also be able to accomplish a minimum compaction force of 3,000 lbs²/ft to reach 98-100% compaction ratings needed for proper compaction. Where this equipment differs from medium range equipment is it’s efficiency. Large jobs are typically performed by professional contractors where speed and jobsite efficiency are critical to their success. Space-savingors that assist jobsite efficiency may feature reverse control, hydraulic drive, and the ability to compact asphalt. If you are not too worried about the time it takes to complete a project, you can save a few bucks and invest in equipment in the medium range.

Technical specs

• Compaction Force: 1,420 lbs/ft²
• Plate Size: 19”x15″ (48.2×38.1cm)
• Blows per Minute: 3000 BPM
• Power: 2.0Hp/1.5kW
• Amperage: 18.8
• Centrifugal Force: 9.4 Kn
• Vibration Frequency: 60 hz
• Travel Speed: 79 ft/min
• Extension Cord: 12 Gauge
• Weight: 110 lbs (49.8kg)
• Voltage: 120 V
• Maximum Gradient: 20°
• Sound Power Level: 64 dBa
• Compaction of Cohesive Soils: 8 Inches (20.3cm)
• Compaction of Granular Soils: 6.2 Inches (15.7cm)
