Tomahawk 3 HP Honda Vibratory Rammer Tamper with Honda GX100 Engine 3350 lbs/ft, JX60H

Tomahawk 3 HP Honda Vibratory Rammer Tamper with Honda GX100 Engine 3350 lbs/ft, JX60H, 853193007253

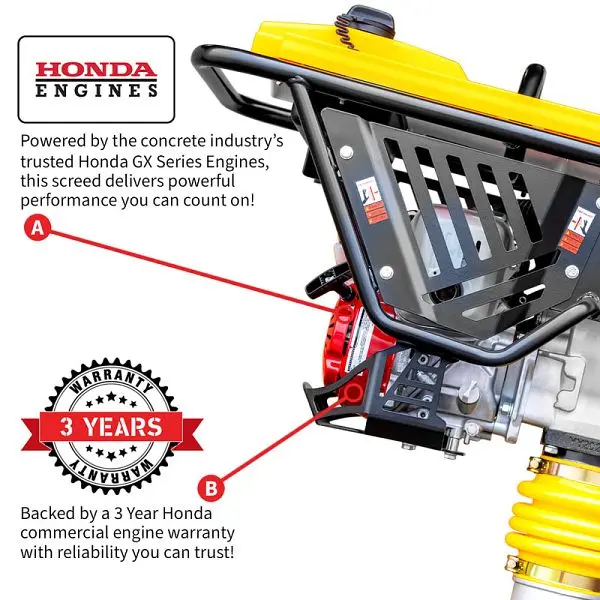

Delivering low emission and noise with its dependable four stroke Honda GX100 engine, the Tomahawk JX60H Tamping Rammer is the supreme compaction tool; perfectly balanced to deliver controlled, skillful jumping motions, without causing any decline to impact force. Utilizing its specially crafted throttle level for smooth operation and heavy shock mount-system, the JX60H’s 13 in. x 11 in.’ laminated wood and steel shoe is able to absorb and resist the strongest vibration shock on the toughest jobsite applications. Its light weight design offers optimum compaction depth and high speed performance, delivering an incredible 3,350 lbs. per square ft. Tough and trustworthy, its protective top frame cover and innovative engine side cover guard protect the engine and recoil starter, eliminating any potential harm during operation. For even greater durability, the JX60H features a plastic, rust-free oil tank and German manufactured polyurethane, ribbed bellow, offering longer life and extended utilize. Its adaptability creates it the optimal rammer for ease and convenience, with the assist of a specially engineered trolley kit, for easy loading and simple transportation.

Attributes

• 98cc / 3 HP Honda GX100
• Accomplish 100% compaction ratings on field density tests and nuclear densometers
• Laminated 13 in. x 11 in. wood and steel shoe
• Regulationled jumping motions at an incredible force of 3,350 lbs. per square ft.
• Space-savingion of cohesive and granular soils, up to 26 in.
• Lifting handles and rollers for simple loading and unloading
• German manufactured polyurethane, ribbed bellow extends service life
• 1-year product warranty and 3-year engine warranty
• CARB and EPA certified

Package Incorporates

• JX60H Vibratory Rammer

Applications

• Retaining Walls
• Footings and Foundation Projects
• Landscapes and Hardscapes
• Patchwork on Asphalt
• Pipeline Applications
• Backfill Pools, Parks, Cemeteries, and Golf Courses
• Pools, Parks, and Golf Courses
• Cohesive Soils and Granular Soils
• Sticky soils – such as clay or clayey silt
• Gravel, sand, silt, clay, or mixed soils
• Base, Subbase, Subgrade, Subsoil

What Space-savingor Do I Need?
A compactor is an vital tool for preparing a solid base for structures such as patios, retaining walls, concrete slabs, and more. Tamping rammers and compactors are utilized to boost the density of soil by reducing air voids, which assist to improve soil stability, back structures, and prevent settling. With so many choices on the market, choosing the right plate compactor can be a daunting assignment.

Small Jobs

If you are installing artificial turf, constructing dirt pathways, or need to improve soil stability – but do not need to adhere to a minimum compaction rating you can utilize a compactor in the 110 lbs (50 kilo) range. These are great for anyone looking to get a job done by themselves with little headache.

Medium Jobs

If your project involves constructing a retaining wall, patio, driveway, sidewalk, or concrete slab you will need a bit more muscle. Rammers and compactors in the130-200 lbs (60-90 kilo) rangethat can accomplish a compaction force above 3,000 lbs²/ft are best. You will accomplish 98-100% compaction ratings needed for proper compaction to prevent soil settling and establishation damage.

Large Jobs

Equipment needed for large compaction projects should also be able to accomplish a minimum compaction force of 3,000 lbs²/ft to reach 98-100% compaction ratings needed for proper compaction. Where this equipment differs from medium range equipment is it’s efficiency. Large jobs are typically performed by professional contractors where speed and jobsite efficiency are critical to their success. Space-savingors that assist jobsite efficiency may feature reverse control, hydraulic drive, and the ability to compact asphalt. If you are not too worried about the time it takes to complete a project, you can save a few bucks and invest in equipment in the medium range.

Technical specs

• Engine: Honda GX100
• Power: 3 HP
• Impact Force: 12.8 KN
• Jumping Stroke: 1.6 – 3.4 in.
• Fuel Tank: 2.8 L
• Weight: 150 lbs. (68 kg)
• Shoe Size: 13 x 11 in. (33×27.9cm)
