Tomahawk 5.5 HP Honda Vibratory Plate Space-savingor Tamper with GX160 Engine with 3.5 Gallon Water Tank, TPC90H

Tomahawk 5.5 HP Honda Vibratory Plate Space-savingor Tamper with GX160 Engine with 3.5 Gallon Water Tank, TPC90H, 853193007031

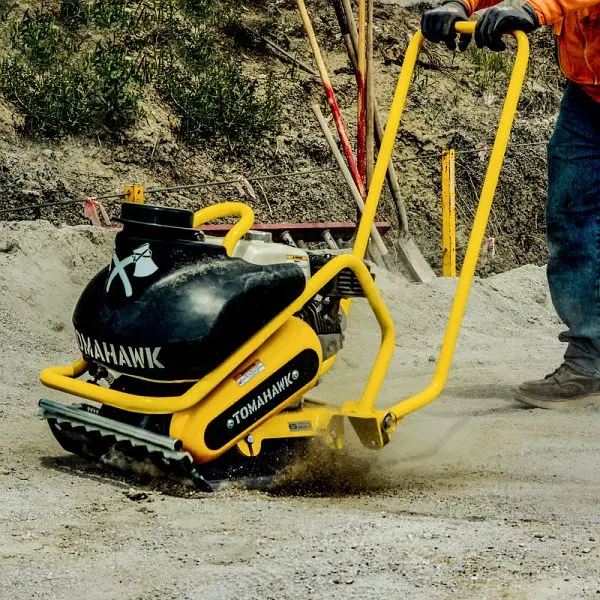

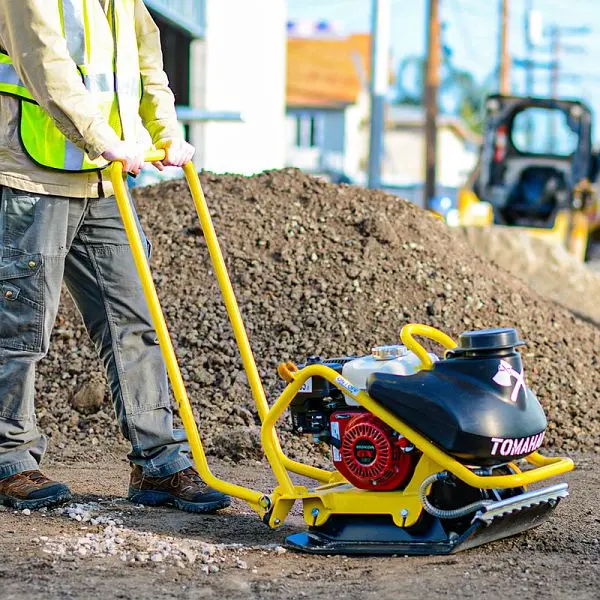

Featuring a 22″ x 20″ cast iron base plate with curved, seamed edges for markless compaction, the TPC90H Forward Plate Space-savingor delivers an incredible force of 3,400 lbs. per square ft. at 5,400VPM. Powered by the incredible 163cc / 5.5 HP Honda GX160 Engine, this vibratory plate is perfect for jobsites, Public Works Departments, and rental fleets. Crafted specifically to maneuver narrow, cramped spaces, the TPC90H compacts cohesive and granular soils up to 12 inches, while its self-cleaning, open base plate minimizes rock and dirt construct up. Perfect for compacting landscapes, hardscapes, roadways, and asphalt, this vibratory plate is perfect for professionals, buildion equipment rental, and do-it-yourselfers alike.

Attributes

• 163cc / 5.5 HP air-cooled 4-stroke OHV Honda GX160 Engine
• Accomplish 100% compaction ratings on field density tests and nuclear densometers
• Space-savingion of cohesive and granular soils up to 12 in.
• Travel speed up to 78 ft/min
• Space-saving soils at an incredible force of 3,400 lbs/ft at 5,400 VPM

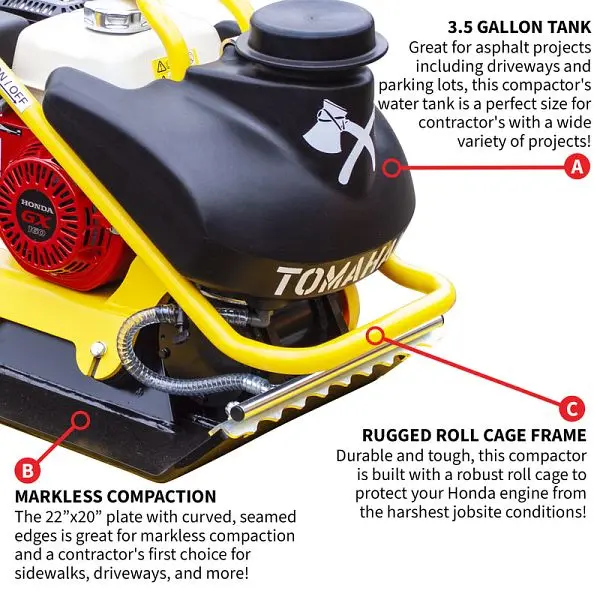

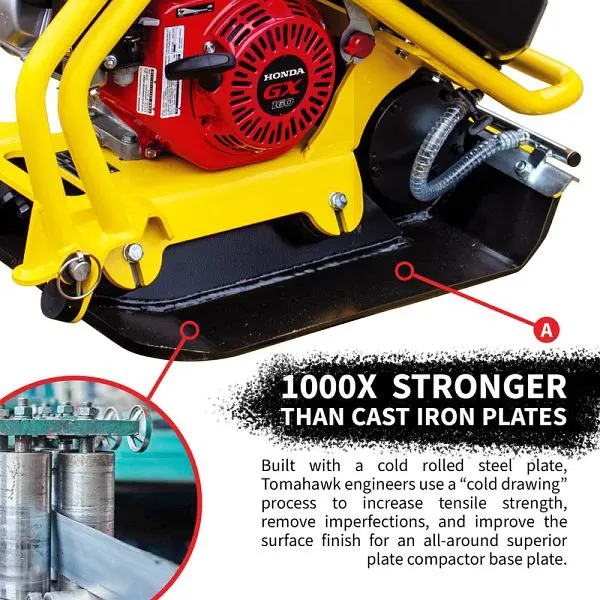

• Cold rolled steel plate with curved, seamed edge base for markless compaction
• Self-cleaning open base plate to minimize rock and dirt construct up
• CARB and EPA compliant

Package Incorporates

• TPC90H Plate Space-savingor
• 3.5 Gallon Water Tank

Applications

• Retaining Walls
• Footings and Foundation Projects
• Landscapes and hardscapes
• Patchwork on Asphalt
• Pipeline Applications
• Road Repair and Trenchwork
• Backfill Pools, Parks, Cemeteries, and Golf Courses
• Cohesive Soils and Granular Soils
• Sticky soils – such as clay or clayey silt
• Gravel, sand, silt, clay, or mixed soils
• Base, Subbase, Subgrade, Subsoil

What Space-savingor Do I Need?
A compactor is an vital tool for preparing a solid base for structures such as patios, retaining walls, concrete slabs, and more. Tamping rammers and compactors are utilized to boost the density of soil by reducing air voids, which assist to improve soil stability, back structures, and prevent settling. With so many choices on the market, choosing the right plate compactor can be a daunting assignment.

Small Jobs

If you are installing artificial turf, constructing dirt pathways, or need to improve soil stability – but do not need to adhere to a minimum compaction rating you can utilize a compactor in the 110 lbs (50 kilo) range. These are great for anyone looking to get a job done by themselves with little headache.

Medium Jobs

If your project involves constructing a retaining wall, patio, driveway, sidewalk, or concrete slab you will need a bit more muscle. Rammers and compactors in the130-200 lbs (60-90 kilo) rangethat can accomplish a compaction force above 3,000 lbs²/ft are best. You will accomplish 98-100% compaction ratings needed for proper compaction to prevent soil settling and establishation damage.

Large Jobs

Equipment needed for large compaction projects should also be able to accomplish a minimum compaction force of 3,000 lbs²/ft to reach 98-100% compaction ratings needed for proper compaction. Where this equipment differs from medium range equipment is it’s efficiency. Large jobs are typically performed by professional contractors where speed and jobsite efficiency are critical to their success. Space-savingors that assist jobsite efficiency may feature reverse control, hydraulic drive, and the ability to compact asphalt. If you are not too worried about the time it takes to complete a project, you can save a few bucks and invest in equipment in the medium range.

Technical specs

• Engine: Honda GX160
• Power: 5.5 HP
• Weight: 240 lbs. (108.8 kg)
• Plate Size: 22 in. × 20 in. (55.8 x 50.8 cm)
• Centrifugal Force: 15 KN
• Vibration Frequency: 90
• Travel Speed: 79 ft./min
