Tomahawk Vibratory Plate Space-savingor Tamper with Kohler Engine for Dirt Gravel Soil Space-savingion, TPC80

Tomahawk Vibratory Plate Space-savingor Tamper with Kohler Engine for Dirt Gravel Soil Space-savingion, TPC80, 853193007000

Featuring a 17″ x 21″ cast iron base plate, the TPC80 Forward Plate Space-savingor delivers an incredible force of 3,000 lbs. per square ft. at 6,400VPM. Powered by the incredible 6 HP Kohler Engine, this vibratory plate is perfect for jobsites, houtilizeholds, and rental fleets. Crafted specifically to maneuver narrow, cramped spaces, the TPC80 compacts cohesive and granular soils up to 22 inches. Perfect for compacting landscapes, hardscapes, roadways, and asphalt, this vibratory plate is perfect for professionals, buildion equipment rental, and do-it-yourselfers alike. Long-lasting and tough, the TPC80 Forward Plate Space-savingor is built to last and is supported by a 3 year engine warranty and 1 year product warranty, making it perfect for those tackling projects including walkways, patios, driveways, or paver installation.

Attributes

• 6 HP chain driven OHC Kohler Engine
• Accomplish 100% compaction ratings on field density tests and nuclear densometers
• Space-savingion force of 3000 lbs/ft² at 6400 blows per minute
• Space-savingion of cohesive and granular soils and clays up to 22 in.
• Travel speed of 79 ft. per minute
• The compact 17 x 21 in. plate works around cramped and narrow spaces
• A full 2 dBA quieter than competitive models
• Large 1 Gal. fuel
• 3-year engine warranty and 1-year product warranty
• CARB and EPA compliant

Package Incorporates

• TPC80 6HP Plate Space-savingor

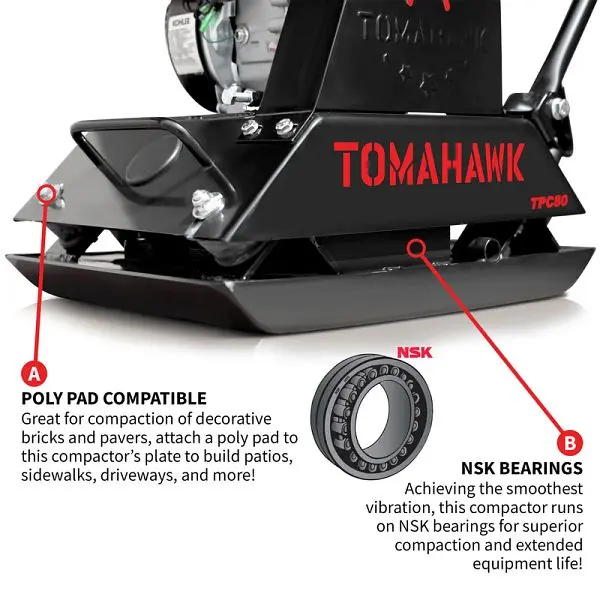

• NSK Bearings
• Kohler Command PRO CH260 engine with 3 Year Warranty

Applications

• Retaining Walls
• Footings and Foundation Projects
• Landscapes and hardscapes
• Patchwork on Asphalt
• Pipeline Applications
• Road Repair and Trenchwork
• Cohesive Soils and Granular Soils
• Sticky soils – such as clay or clayey silt
• Gravel, sand, silt, clay, or mixed soils
• Base, Subbase, Subgrade, Subsoil
• Backfill Pools, Parks, Cemeteries, and Golf Courses

What Space-savingor Do I Need?
A compactor is an vital tool for preparing a solid base for structures such as patios, retaining walls, concrete slabs, and more. Tamping rammers and compactors are utilized to boost the density of soil by reducing air voids, which assist to improve soil stability, back structures, and prevent settling. With so many choices on the market, choosing the right plate compactor can be a daunting assignment.

Small Jobs

If you are installing artificial turf, constructing dirt pathways, or need to improve soil stability – but do not need to adhere to a minimum compaction rating you can utilize a compactor in the 110 lbs (50 kilo) range. These are great for anyone looking to get a job done by themselves with little headache.

Medium Jobs

If your project involves constructing a retaining wall, patio, driveway, sidewalk, or concrete slab you will need a bit more muscle. Rammers and compactors in the130-200 lbs (60-90 kilo) rangethat can accomplish a compaction force above 3,000 lbs²/ft are best. You will accomplish 98-100% compaction ratings needed for proper compaction to prevent soil settling and establishation damage.

Large Jobs

Equipment needed for large compaction projects should also be able to accomplish a minimum compaction force of 3,000 lbs²/ft to reach 98-100% compaction ratings needed for proper compaction. Where this equipment differs from medium range equipment is it’s efficiency. Large jobs are typically performed by professional contractors where speed and jobsite efficiency are critical to their success. Space-savingors that assist jobsite efficiency may feature reverse control, hydraulic drive, and the ability to compact asphalt. If you are not too worried about the time it takes to complete a project, you can save a few bucks and invest in equipment in the medium range.

Technical specs

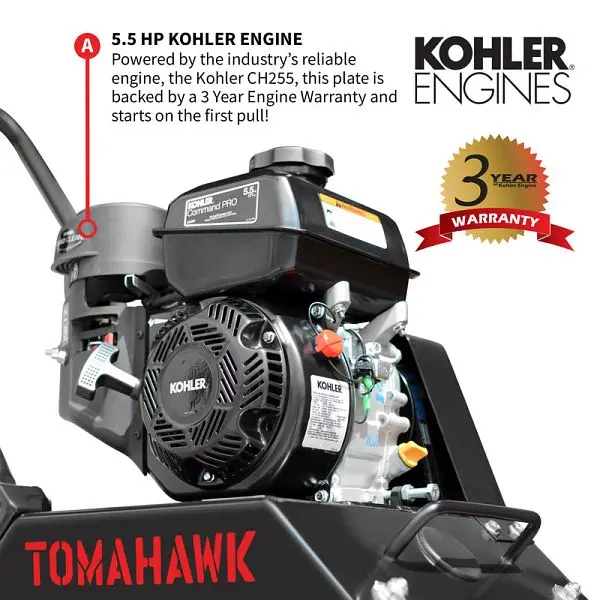

• Engine: Kohler Command PRO CH260
• Power: 6HP
• Weight: 220 lbs (99.7 kg)
• Plate Size (LxW): 17 x 21 in ( 43.1 x 53.3 cm)
• Centrifugal Force: 13 Kn
• Vibration Frequency: 100 hz
• Travel Speed: 79 ft/min
