Unitherm Heating Plate 160mm, ZTHJ-160

Unitherm Heating Plate 160mm, ZTHJ-160

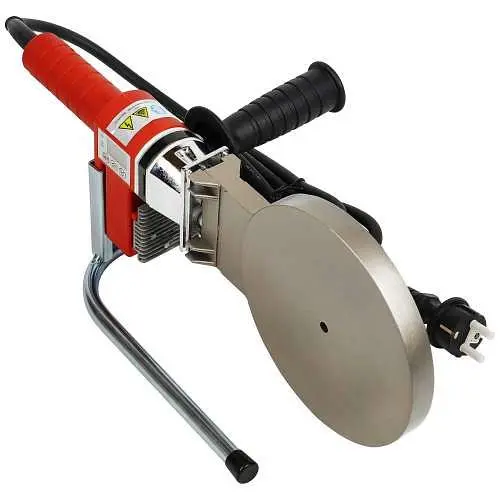

It’s a hand-held socket fusion machine for joining pipes and fittings, with welding range from OD 20mm to 160mm (1/2” to 6”). It can be utilized to weld HDPE, PP, PP-R, PVDF, PB pipes and fittings. This machine is a digital model, with a highly integrated PCB for auto temperature control, and a temperature display on the side of handle. It’s a 160mm heating plate, can be utilized to do butt welding, also can be utilized with a pair of heating socket and spigot to do socket fusion.

Technical specs

• Power: 1800W
• Voltage: 100-120V or 220V-240V
• Frequency: 50/60Hz
• Working temperature: 200°C to 280°C or 392°F to 536°F
• Weight: 8.2 kg or 18 lbs
• Dimensions: 520 x 260 x 140 mm
