Ventry Fan Model 24GX120, Honda GX120, 3.5 hp, Gasoline, 24GX120

Ventry Fan Model 24GX120, Honda GX120, 3.5 hp, Gasoline, 24GX120

Basic Model. Accesories NOT Incorporated.

Picture may differ from actual product

This gasoline powered Ventry® Fan boasts an extremely tight cone of air and is very efficient, with the most impressive ratio of horsepower-to-CFM of all the Ventry Fans due to this combination of the longest propeller and smallest motor. This model is the lightest of the 24-inch GX-series models and offers great value.

It is most often utilized for positive pressure ventilation (fire fighting) and is popular for large scale brush burning (landscaping and buildion) also.

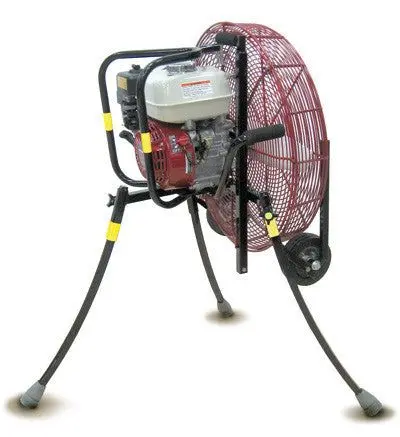

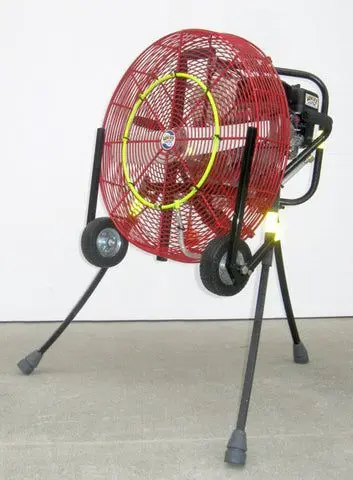

All-terrain legs. Three outward-curving, independently adjustable legs made of solid, aircraft-grade aluminum, each having an simple-to-grab locking knob for fast, secure adjustments. They give the fan three-point stability, unlimited tilt/aiming and fast deployment. Legs provide a rock-solid stance and truly stand-alone operation, no matter the terrain or obstacles (snow, stairs, standing water, debris, rose bushes).

Ventry safety propeller. Two-blade, aircraft style, status-of-the-art propeller, engineered specifically for the 3.5 hp motor. Supplys high CFM, longevity, and fail-safe performance.

Clearance. Up to 14 inches between propeller and ground allows no intake of foreign matter so debris won’t be picked up or plug the fan. For added safety and performance, always extend the legs on your Ventry Fan when in utilize, even if it’s only 6 inches

Free-Flow Guard. Un-shrouded, double reinforced wire guard allows maximum air supply to the propeller which boosts air volume (CFM) and decreases noise. Video: noise drops and CFM boosts as a solid shroud is removed from a Ventry Fan in this demonstration.

Dual side handles. Side handles provide an simple, fast way for one or two people to lift and carry the fan.

Long Distance Ventilation. Forward sweeping propeller tips produce narrow, consistent air stream for placement far from the target (8-15 ft is ideal). Fan is well out of the way of crew and equipment and allows safer and more effective ventilation.

GX120 Honda Engine. The Honda GX120 is a heavy-duty motor featuring cast iron bores, low-oil shut off protection, an on/off switch separate from the throttle, and a fuel shut-off valve.

Warranties. Backed by a 3-year warranty on the Honda motor, our overall 5-year “no BS” warranty on workmanship and materials, and lifetime factory helpance.

Technical specs

• Patent: 5,503,526
• Model: Ventry® Fan Model 24GX120
• Motor/Engine: 3.5 hp Honda GX120 (rated 4 hp prior to 2007)
• Type: Gas
• Propeller: 24-inch Ventry Safety Propeller
• Volume: 20,000 CFM (33,975 m3/h) Air volume in cubic feet per minute (CFM) is measured with the fan’s legs extended.
• Thrust: 17.6 Lb (8 kg) Based on Newton’s third law of motion, thrust is a reproducible measure of fan performance that allows easy comparison and has far fewer variables than direct measure of CFM.
• Fuel Capacity: 2.1 qt
• Run Time per Tank: 1.8 hrs
• Weight: 78 Lbs (35.3 kg) Base model, dry, without options.
• Dimensions (W x D x H): Actual measurements may vary ±1/2 inch due to normal manufacturing processes. Measurements taken with legs retracted for storage.
• Base Model Fan, No Wheels: 27 x 22 x 28 inches (68.6 x 55.2 x 71.1 cm)

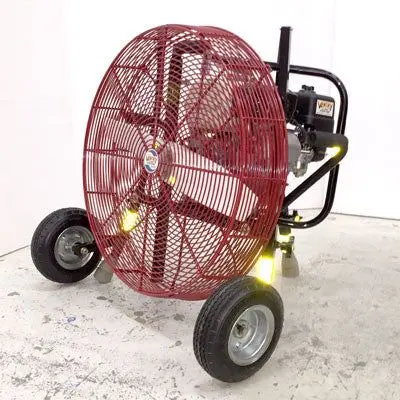

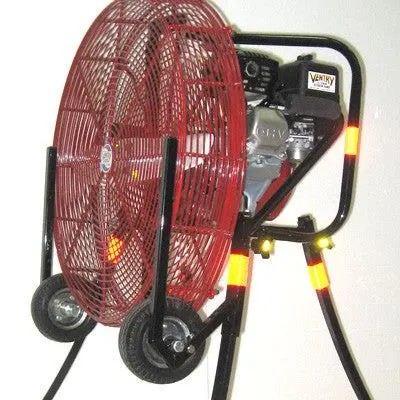

• Fan with Small Solid Rubber Wheels & Skids: 27 x 23 x 28 inches (68.6 x 57.8 x 71.1 cm)
• Fan with Medium Flat-Free Wheels & Skids: 27 x 24 x 28 inches (68.6 x 61 x 71.1 cm)
• Fan with Large Pneumatic Tires: 30 x 26 x 28 inches (76.2 x 65.4 x 71.1 cm)
• Warranty: 5 years workmanship and materials + lifetime factory assistance
• Engine Warranty: 3 years commercial/institutional use
