VEVOR 100 Plate Heat Exalterr 4*1-1/4" MNPT Ports 5"x 12" Brazed 316L St. Carbon Steel, QHBSHRQ51210IH0Z3V0

VEVOR 100 Plate Heat Exalterr 4*1-1/4″ MNPT Ports 5″x 12″ Brazed 316L St. Steel, QHBSHRQ51210IH0Z3V0, 197988220084

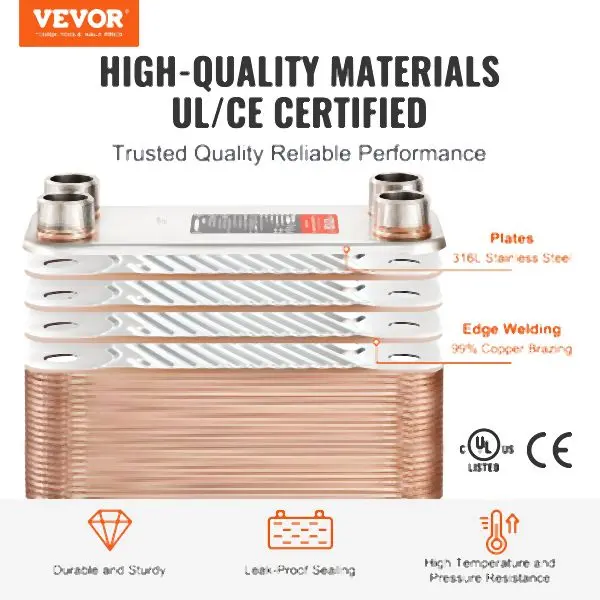

• High-Standard Materials: Made of 316L stainless steel with 99% copper brazing at edges and contact points, forming a robust and leak-resistant unit that withstands high pressure and temperature. UL and CE certified for reliable quality.

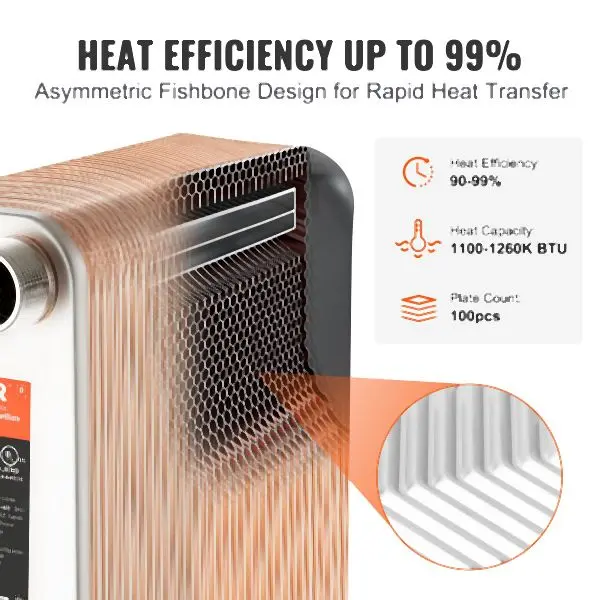

• Productive Heat Transfer: The high-conductivity stainless steel plates feature an asymmetrical herringbone pattern, creating intense pressure turbulence for efficient heating/cooling. With up to 99% heat efficiency, it generates 1100-1260K BTU per hour, saving pump power and electricity, reducing overall application costs.

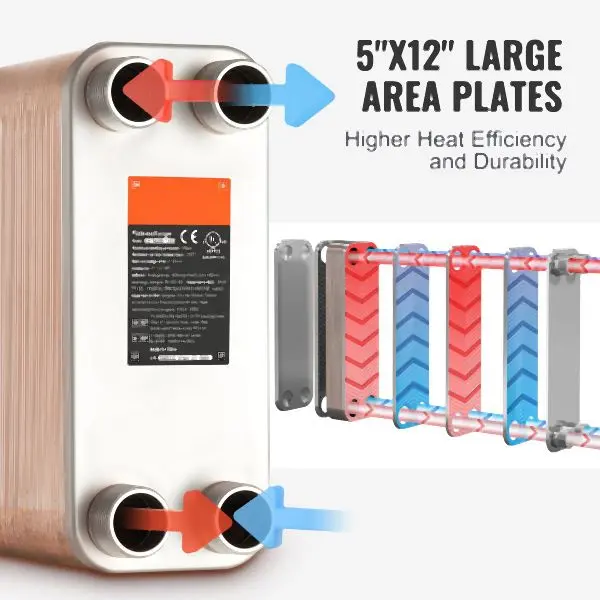

• Large Heat Exalter Area: The heat exalterr features 5″x12″ plates with up to 100 plates, providing excellent heat transfer performance for maximum efficiency. Suitable for operating temperatures from -292°F to 392°F.

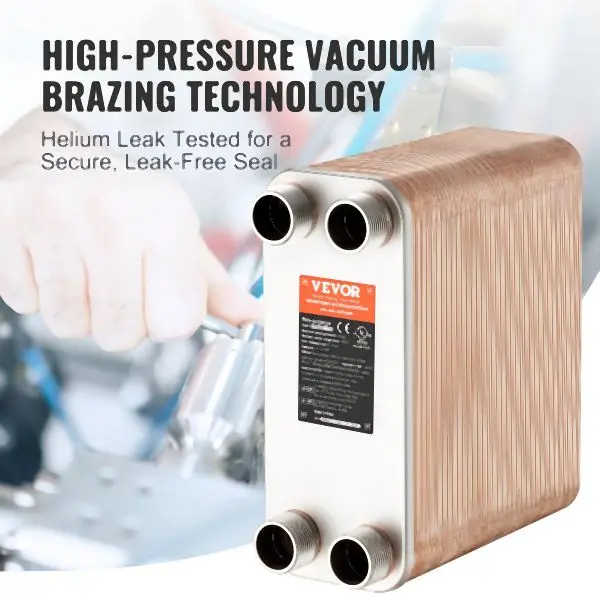

• Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exalterr utilizes high-pressure vacuum brazing and undergoes helium leak testing, ensuring long life and high reliability.
• Stable Setup: Incorporates two stainless steel brackets made of 304 stainless steel, offering excellent rust resistance and stability for simple and secure mounting of the heat exalterr.

Technical specs

• Thermal Efficiency: 90～99%
• Heat Capacity: 1100-1260K BTU
• Plate Area: 5×12 inch/ 127x305mm
• Plates Quantity(pcs): 100
• Port: 4*1-1/4″ MNPT External Thread
• Color: Stainless Steel + Copper Color
• Material: 304/316 Stainless Steel, Solder
• Net Weight (with Accessories): 33.51lb / 15.2kg
• Product Dimensions (L x W x H): 11.85×4.96×9.69in / 301x126x246 mm
