VEVOR 3/4" x 300ft PEX Tubing Oxygen Barrier O2 EVOH Crimson Floor Radiant Heat, PEXG300FT3-4SCHS1V0

VEVOR 3/4″ x 300ft PEX Tubing Oxygen Barrier O2 EVOH Red Floor Radiant Heat, PEXG300FT3-4SCHS1V0, 609832073659

3/4″ PEX Tubing

This 300ft pex pipe is commonly utilized for plumbing, radiant & hydronic systems. It is quick to install, flexible and utilized on hot/cold potable water lines. EVOH oxygen barrier layer, prevent O2 from penetrating into tubing system.

• Qualitys, Certifications & Approvals
• ASTM F876: Quality specification for crosslinked polyethylene (PEX) tubing.
• ASTM F877: Quality specification for crosslinked polyethylene (PEX) plastic hot- and-cold-water distribution systems.
• ASTM F2023: Quality test method for evaluating the oxidative resistance of crosslinked polyethylene (PEX) tubing and systems to hot chlorinated water.
• CSA B137.5: Crosslinked polyethylene (PEX) tubing systems for pressure applications.
• All oxygen barrier PEX tubing we sell meets and exceeds DIN 4726 standard for oxygen barrier requirements.

• 3/4″ PEX Tube: Industrial-grade pex tubing, crack-resistant, leakage-proof and anti-aging after long year’s utilize. Nominal Diameter: 3/4″; Tube Length: 300ft, longer than normal products.

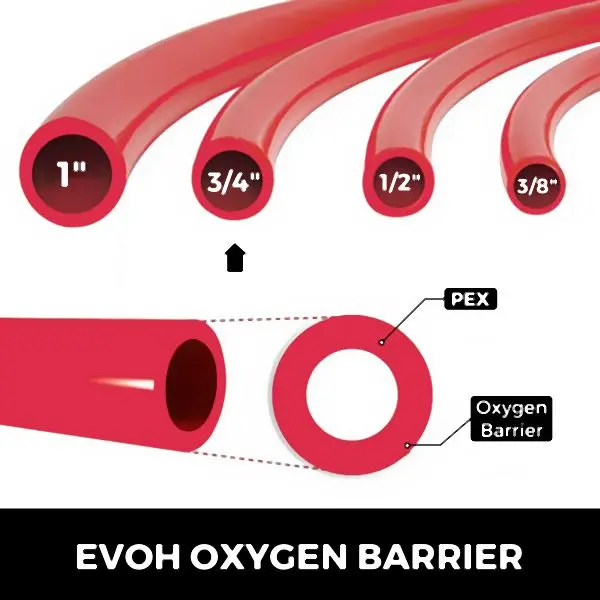

• EVOH Oxygen Barrier: Designed with a layer of EVOH for O2 barrier, prevent oxygen and external elements from penetrating or corrode the metal components.

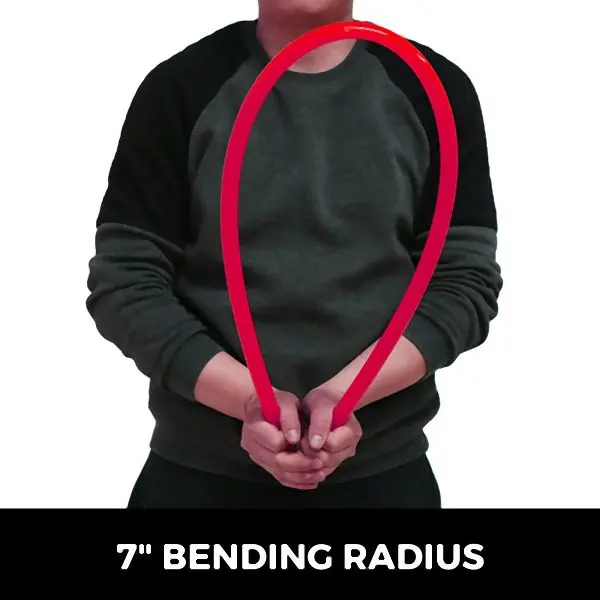

• 7″ Bending Radius: Expands and shrinks with temperature alters and back freeze resistant, this tube is with min.7″ bending radius(industry standard for 3/4″ pipe) and excellent flexibility.
• Various Tube Connection: Can be connected in many ways: Crimp connection system(crimp tool + rings + fittings).; Cinch (clamp) connection system; Press system(by Viega); Compression PEX Fittings.

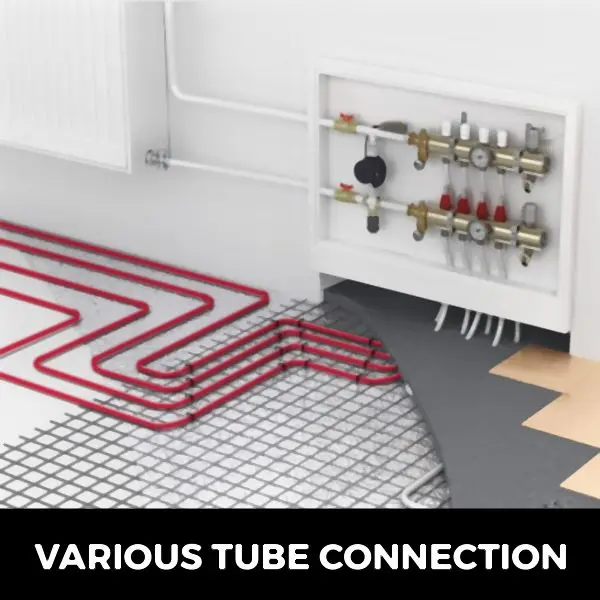

• Different Setup Ways: Suitable for many floors, like: (non-) structural concrete slabs; staple-up (between joists) radiant floor heat; “Sandwich” type radiant heating; Snow & ice melting systems etc.
• Wide Application Places: Multi-utilize water pipe, applied for plumbing, radiant & hydronic systems, and potable water. Keep quick hot & cold water flows. Red color just for easier identification.

Package Content

• 1 x 300ft 3/4″ Oxygen Barrier PEX Tube

Technical specs

• Total Length: 300ft
• Type: PEX Tube(Oxygen Barrier)
• ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications).
• SDR-9 dimensional standards.
• Inside Diameter: 0.66″
• Pressure Ratings: 188-217psi at 20°C; 101-108psi at 95°C
• UPC listed by IAPMO.
• Temperature Range: -45 to 110°C( -47°F to 230°F)
• Min.Bending Radius: 7″
• Nominal Diameter: 3/4″
• Outside Diameter: 0.86″
• Tube Thickness: 0.1″
