VEVOR 40A MPPT Solar Charge Regulationler, 12V / 24V Auto DC Contribution, DYTYNCDKZQNZLYK1MV9

VEVOR 40A MPPT Solar Charge Regulationler, 12V / 24V Auto DC Contribution, DYTYNCDKZQNZLYK1MV9, 840349949000

Solar Panel Regulator Charger with Bluetooth Module, 98% Charging Efficiency for Sealed(AGM), Gel, Flooded and Lithium Battery Charging.

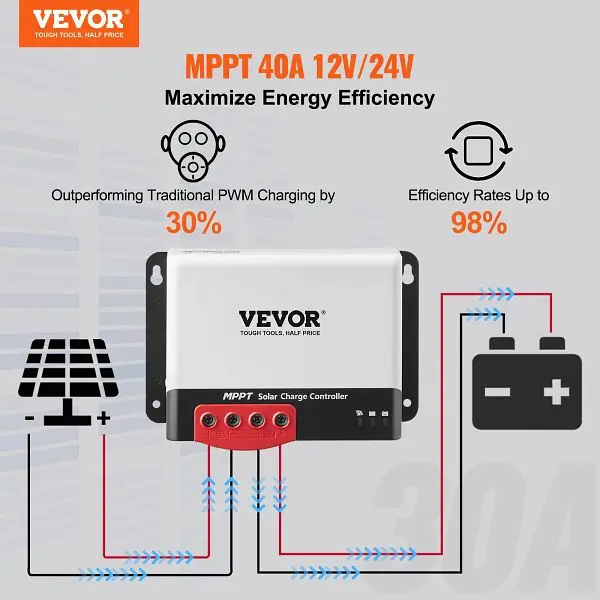

• Productive Charging: Utilizing developd MPPT technology, surpassing traditional PWM charging technology by 15-30%, and achieving an ideal conversion efficiency of up to 98%. This means faster charging times, higher energy utilization, and longer-lasting operation for your devices.

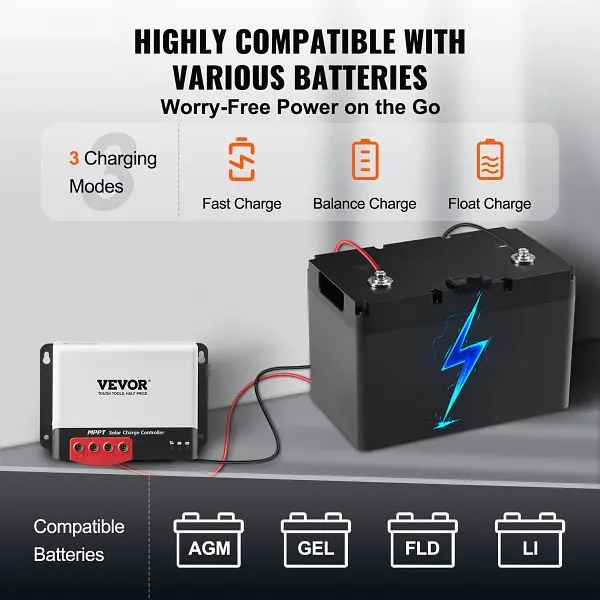

• Multi-functional Compatibility: Suitable for various surroundingss and devices, from home solar power systems to mobile photovoltaic systems. The solar charge controller can handle charging currents of up to 40A and backs a maximum solar panel power of 12V 520W / 24V 1040W. It’s compatible with various common deep-cycle sealed batteries (AGM), gel batteries, flood batteries, and lithium batteries.

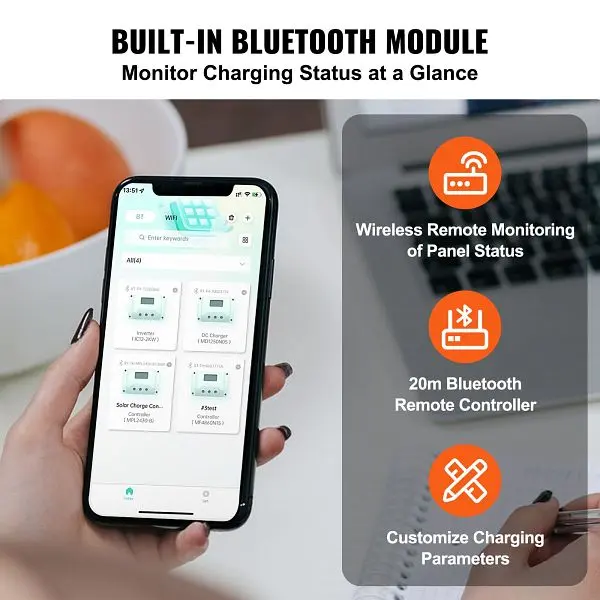

• Easy to Use & Regulation: Equipped with a built-in Bluetooth module, allowing remote monitoring of crucial data for utilizer convenience. The mppt solar controller assists utilizers easily monitor and adjust the device’s operating state. Additionally, it comes with a TTL communication interface, backing the Modbus communication protocol for versatile functionality expansion and meeting various communication needs.

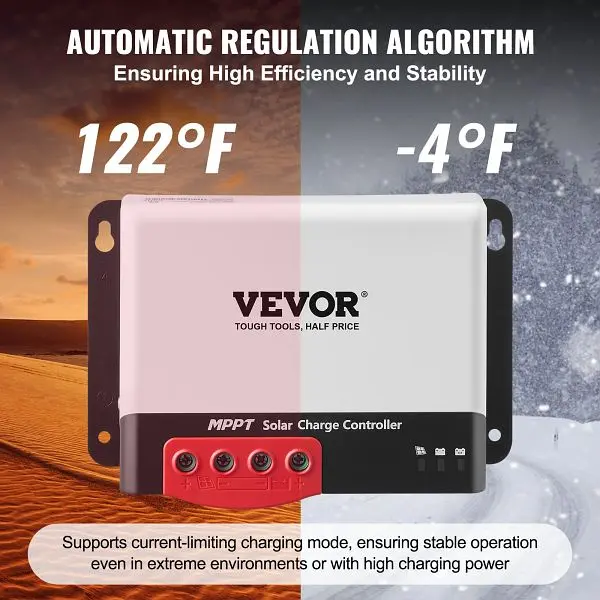

• High Stability: Automatic adjustment algorithms and back for current-limiting charging mode ensure stable operation even in extreme situations, such as high temperatures up to 50°C (122°F) or low temperatures down to -20°C (-4°F), as well as during high charging power conditions.
• Improved Security: Offers all-around electronic protection features, including battery reverse protection, PV reverse protection, PV short-circuit protection, overcurrent protection during charging, and TVS lightning protection. These features ensure the security and long-term utilize of the device.

Technical specs

• Charging Current(DC): Max. 40A
• Applicable Battery Voltage(DC): 12V/24V Auto
• Solar Panel Open Circuit Voltage: Max. 100V DC
• Rated Input Power: 12V/520W; 24V/1040W
• MPPT Control Efficiency: ≥98%
• Charging Modes: Fast Charge, Balance, Float
• External Communication: Built-in Bluetooth Module, Control via Neutral App
• External Temperature Sensor: Supported
• Main Material: ABS+PC
• Operating Temperature Range: -20°C to 50°C/-4°F to 122°F
• Product Net Weight: 1.33 kg/2.93 lbs
• Product Dimensions: 183 x 125 x 70 mm/7.20 x 4.92 x 2.76 inches
• Package Dimensions: 240 x 190 x 130 mm/9.45 x 7.48 x 5.12 inches
