VEVOR Bench Pipe Clamp Vise High Precision Clamping Vise 6" Jaw Width CNC Vise Fixed Jaw, TQ6YCJMJYHQHT0001V0

VEVOR Bench Clamp Vise High Precision Clamping Vise 6″ Jaw Width CNC Vise Fixed Jaw, TQ6YCJMJYHQHT0001V0, 617201413258

6″ Multifunction Precision Lockdown Vise

During workshop operation, many workpieces minor damage due to their materials or excessive force, which cautilized work delays or economic losses. Therefore, to avoid damage to your workpiece, we recommend that you utilize the vise to clamp the workpiece. Our vise has a strong clamping force and can hold the workpiece very firmly. It can ensure the stability of the workpiece and avoid damage.

• Luxury Standard Structure
• Powerful Clamping Force
• High Accuracy Screw
• Humanized Design
• Multifunctional Tool

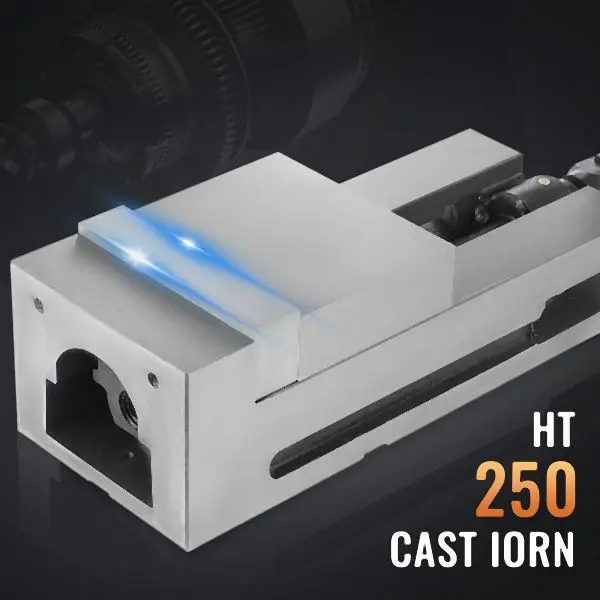

• Long-lasting Material: The vise is made of HT250 high-quality cast iron, with strong toughness, high tensile strength, and wear resistance. Internal refine grinding treatment, smooth utilize, no jamming, rust, and corrosion resistance.

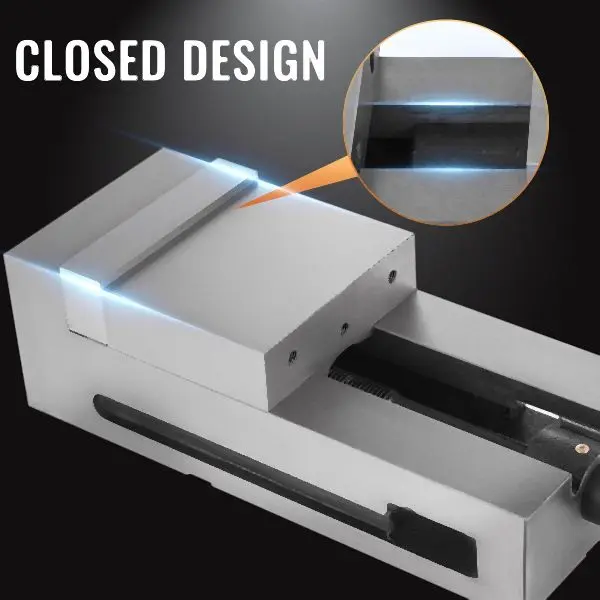

• Hardened Clamping Jaw: The jaws are thickened and finely ground, and the maximum clamping force can reach 29 KN. The lockdown vise machine adopts a fully enclosed design, and iron filings are not simple to enter, which improves the service life of the vise.

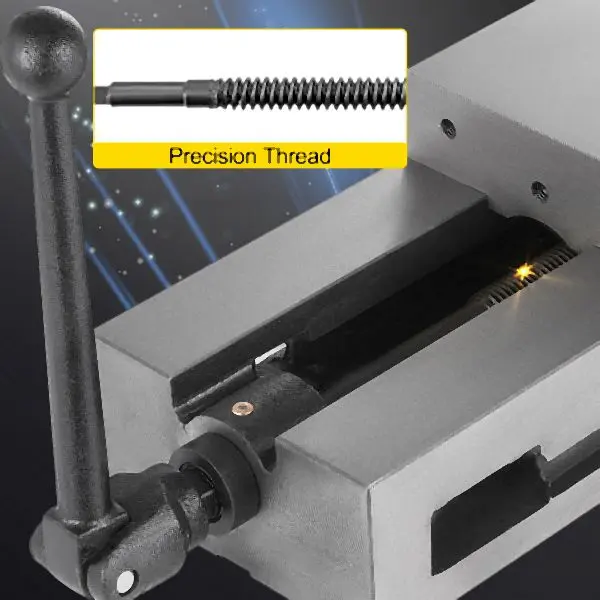

• Standard Lead Screw: The thread pitch of the ladder screw is larger than the standard screw. The surface is quenched, turned, and ground. It is more wear-resistant, durable, and corrosion-resistant than the ordinary screw, and has higher accuracy.

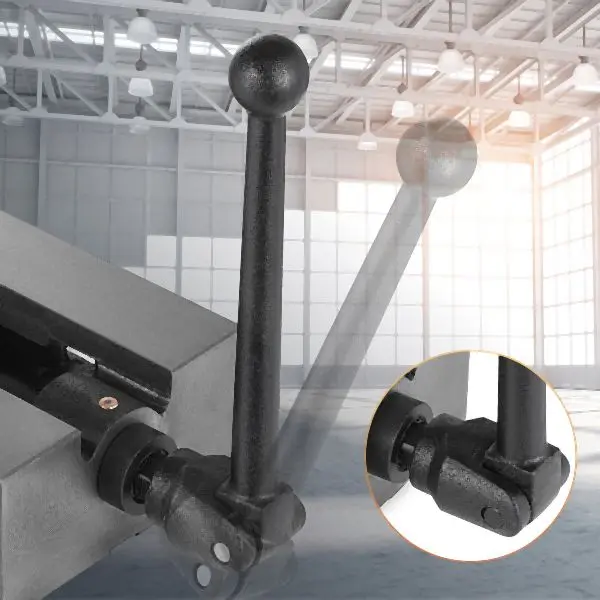

• Adjustable Handle: The universal joint handle is ductile iron material, which is not simple to rust and is flexible and durable. You can precisely adjust the gripping force of the jaws through the handle, and complete the workpiece clamping work excellently.
• Precision Design: The guide rail surface is refined ground, seamless contact surface, and the positioning is more accurate. Compared with a standard vise, it can be utilized upright without influenceing the accuracy of clamping the workpiece.
• Wide Application: Precision milling vise is the main accessory of precision milling machine and NC/CNC machine tool. Suitable for concludeing milling machines, drilling machines, and precision parts.

Package Content

• 1 x 6″ Bench Clamp Vise Fixed Jaw
• 1 x Handle
• 1 x Manual

Technical specs

• Jaw material: 45# steel
• Type: Bench Vise
• Jaw opening: 6.3″ (160 mm)
• Jaw height: 1.8″ (45 mm)
• Gross weight: 55.6 lbs (25.2 kg)
• Wrench material: QT500 ductile iron
• Jaw width: 6″ (150 mm)
• Body material: HT250 gray cast iron
• Vise Height: 4.7″ (120 mm)
• Max Clamping force: 29 KN
• Package dimensions (L x W x H): 18.1″ x 12.6″ x 6.7″ (46 x 32 x 17 cm)
