VEVOR BestEquip Heat Exalterr 3" x 7.5" 60 Plates Brazed Plate Heat Exalterr 316L 1/2" BSP FPT Heat Exalterr, BSHRQ1260FB12G601V0

VEVOR BestEquip Heat Exalterr 3″ x 7.5″ 60 Plates Brazed Plate Heat Exalterr 316L 1/2″ BSP FPT Heat Exalterr, BSHRQ1260FB12G601V0, 609832243519

Brazed Plate Heat Exalterr 60 Plate Heat Exalterr

Our brand new heat exalterr features a compact & lightweight body, offering excellent thermal performance, and 316L stainless steel+99.9% copper material can ensure its long life, so it is perfect for Solar heating, Oil unit heat recovery Engine cooling, evaporation and condensing, etc.

• High Thermal Efficiency
• Energy Refined
• Sturdy Construction
• Space-saving Design

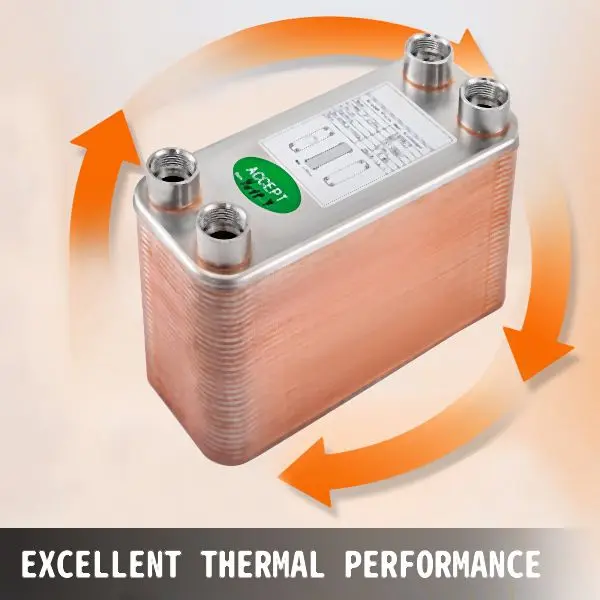

• Excellent Thermal Executeance: Extremely efficient herringbone buildion for maximum heat transfer.

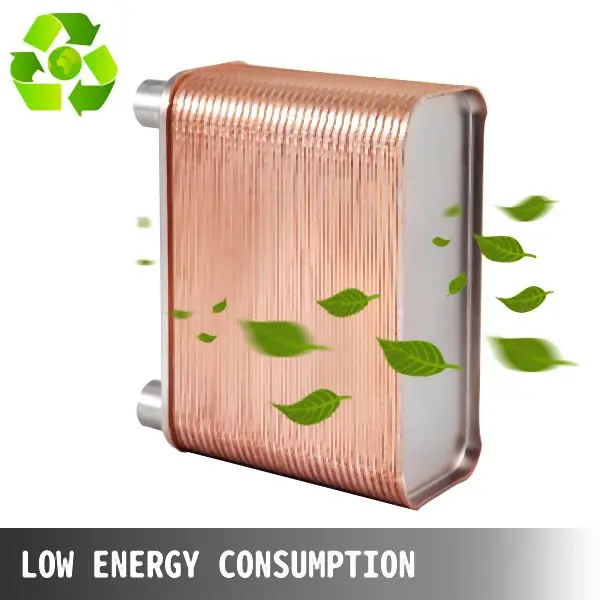

• Low Energy Consumption: Low energy consumption due to the very low-pressure drop over the heat exalterr.

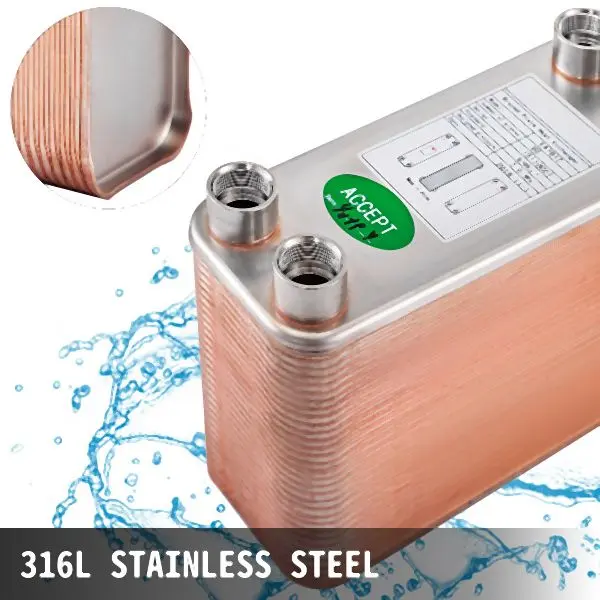

• 316L Stainless Steel: The heat exalterr comprises 316L stainless steel with high toughness to resist pressure, corrosion, and rust.
• Dedicated FB Ports: Four Thickened 1/2″ BSP FPT ports for your easier installation.
• Space-saving & Flexible: The footprint can be as little as one-tenth that of a shell & tube heat exalterr, and its compact size means it also offers greater system design freedom.
• Wide Application: The heat exalterr plate is ideal for outdoor wood furnaces/boilers, radiant floor heating projects, plumbing systems, snowmelt systems, swimming pools, domestic water applications, HVAC and refrigeration systems, solar heating, and other liquid to liquid heat transfer applications.

Package Content

• 1 x Heat Exalterr
• 1 x A Pair of Hoops

Technical specs

• Plate Quantity: 60
• Design Pressure(Max): 3.0 Mpa
• Model: B12-60
• Design Temp.(°C): Min -196
• Ports: 1/2″ BSP FPT
• Material: 316L +99.9% Copper
• Dimension: 7.6″ x 2.8″ x 6.3″ / 19.4 cm x 7.2 cm x 16.1 cm
• Test Pressure: (Min): 4.5 Mpa
