VEVOR Hydraulic Rebar Bender, 3000W Electric Rebar Bender, TSGJWQJD321000001V1

VEVOR Hydraulic Rebar Bender, 3000W Electric Rebar Bender, TSGJWQJD321000001V1, 840349906294

3000W Electric Rebar Bender 1-1/4″(#10) Grade 60

1/4” to 1-1/4″ Rebar Diameter & 6-7 Seconds & 0-180 Degrees

The rebar bender machine can bend 1/4”(#2) to 1-1/4″(#10) (6 to 32 mm) rebar to 0-180° in 6-7 seconds. Two standard foot pedal control switches for hands-free bending. This rod bending machine is multi-purpose for buildion or all kinds of other things related to rebar, steel bar, steel rod, screw thread steel, carbon steel, round steel bending. It is ideal for manufacturers who need easy, simple-to-utilize, consistent, and accurate steel bending machines. A must-have for the professional concrete installer!

• 6-7S Ultra-Fast Bending Speed
• 3000W Pure Copper Coil Motor
• Angle Adjustment Knobs
• Robust Machine Body
• Easy to Operate & Transport

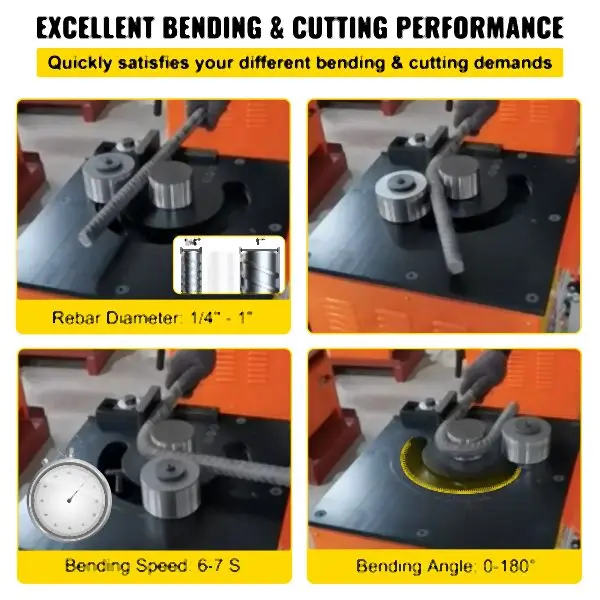

• 6-7 Seconds Bending Speed: The steel rebar bender bends 1/4” to 1-1/4″ (6 to 32 mm) steel super fast in just 6 -7 seconds. Bending Angle: 0-180°. The bending speed depends on the thickness of the rebar and the angle you want to reach. Max. Rebar Diameter: 1-1/4” / 32 mm #10 Grade 60.

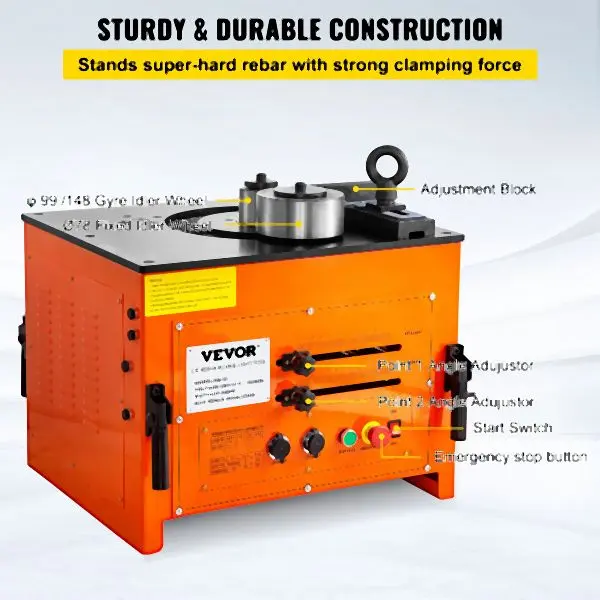

• Two Angle Adjustors: Adjust the angle you need by moving left or right, and after angle adjustment is set accurately, ensure that the angle setting handle is fixed. When you discover some abnormal during the operation, you must press down emergency stopped to close down the machine’s operation.
• Iron Idler Wheel: The high-strength φ78 / 109 Fixed Idler Wheel and φ99 / 148 Gyre Idler Wheel are made of iron materials, are more firm, and not easily deformed. Besides, exceeding designated material specifications greatly boosts this risk and will also damage the tool.

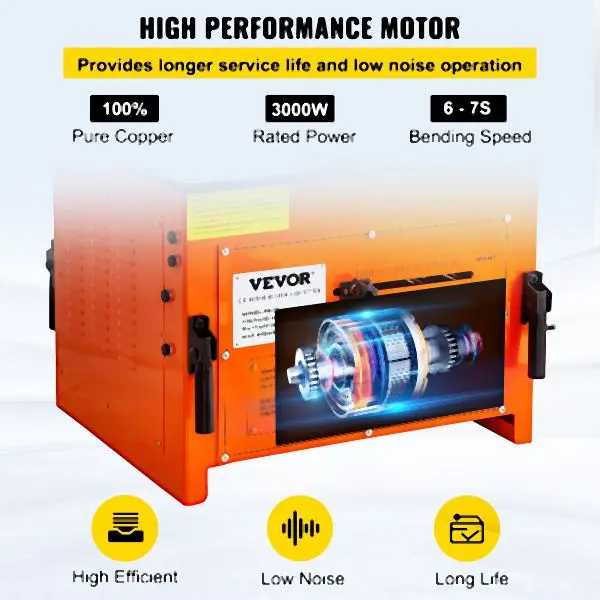

• 3000W Powerful Motor: The rebar bending machine features a 100% pure copper core high-power motor with double endurance for high conductivity, low noise operation, high-temperature resistance, and saves energy for a long time. Frequency: 60 Hz, Amps: 26A, Noise: 105 dB(A).
• Humanized Foot Pedal & Handle: The foot switch connection to point 1,2 will create it more convenient to go to work. And when pressing the starting switch or the foot switch will bend the rebar to the angle you have set. When moving the bender by fixing the handle, 4 bolts can not loose, then move the bender together by 4 handles.

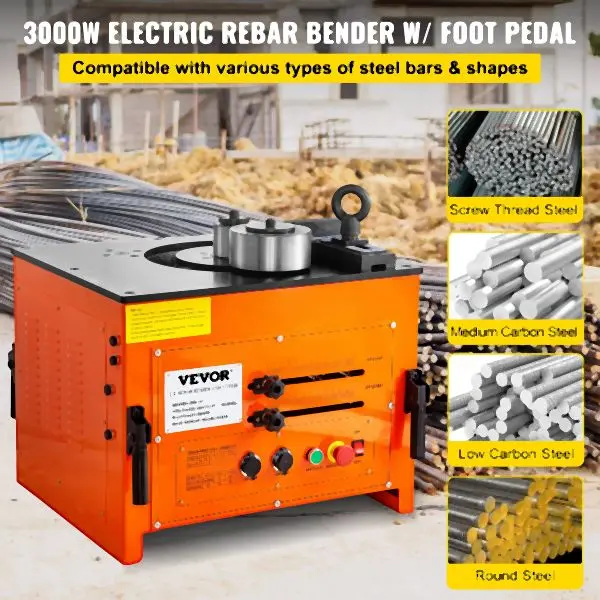

• Extensive Application: The hydraulic rebar bender is widely applied in buildion engineering / bridge buildion / railway viaduct / dock highway bridges / electric power constructing. Ideal for bending rebar, steel bar, steel rod, screw thread steel, carbon steel, round steel, etc.

Package Content

• 1 x Electric Rebar Bender
• 2 x Foot Pedals
• 3 x Tension Springs
• 4 x Carbon Brushes
• 1 x User Manual

Technical specs

• Min. Rebar Diameter: 1/4” / 6 mm #2 Grade 60
• Gross Weight: 447.54 lbs / 203 kg
• Packing Size(L x W x H): 25.59 x 25.59 x 28.74” / 65 x 65 x 73 cm
• Noise: 105 dB(A)
• Max. Rebar Hardness: HRC30
• Max. Rebar Diameter: 1-1/4” / 32 mm #10 Grade 60
• Bending Radius: 1.97” / 50 mm
• Amps: 26A
• Item Dimensions(L x W x H): 23.62 x 22.83 x 18.5” / 60 x 58 x 47 cm
• Bending Angle: 0-180°
• Voltage: 110V
• Model: RB-32
• Bending Speed: 6-7 Seconds
• Frequency: 60 Hz
• Shell Material: Iron
• Net Weight: 385.8 lbs / 175 kg
• Application: Rebar, Round Steel, Flat Iron, Steel Bar Processing Plant, Construction Industry, Bridge Construction, etc
• Power: 3000W
• Certificate: CE
