VEVOR Industrial Water Chiller for Single 130/150W CO2 Laser Tube 110V 60Hz, CW5200DGLSJ000001V1

VEVOR Industrial Water Chiller for Single 130/150W CO2 Laser Tube 110V 60Hz, CW5200DGLSJ000001V1, 601285885933

CW-5200 Industrial Water Cooler Chiller

CW-5200 Series is a professional cooling machine referring to international, developd thermolysis cooling system design, suitable for small water-cooled cooling devices requested machinery. It has 6L cooling tank capacity With completed water flow and over high-temperature alarm functions. Constructed-In cooling fan for effective ventilation ensures its high heat dissipating capacity. Crafted for cooling the one CO2 glass laser tube under 130W/150W of the laser engraving and cutting machine.

• Product Parameter
• Productive Cooling Fan
• Accurate Thermostat
• Various Alarm Functions

• 6L Cooling Tank Capacity: The water cooler chiller features a stable performance with an 6L large-capacity cooling box. Equipped with a precision scale, you can fill with water according to the scale.

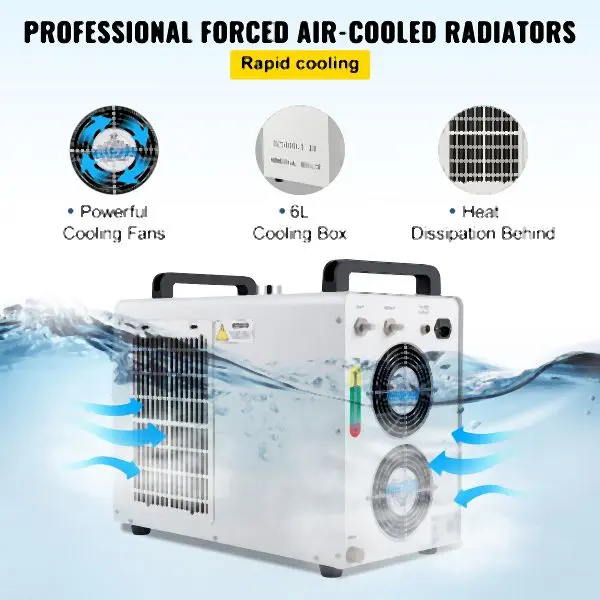

• Dual Cooling Fans: Professional forced air-cooled radiators inside rapidly takes away the heat. High heat dissipating capacity determines that the water cooler chiller is not simple to be blocked.

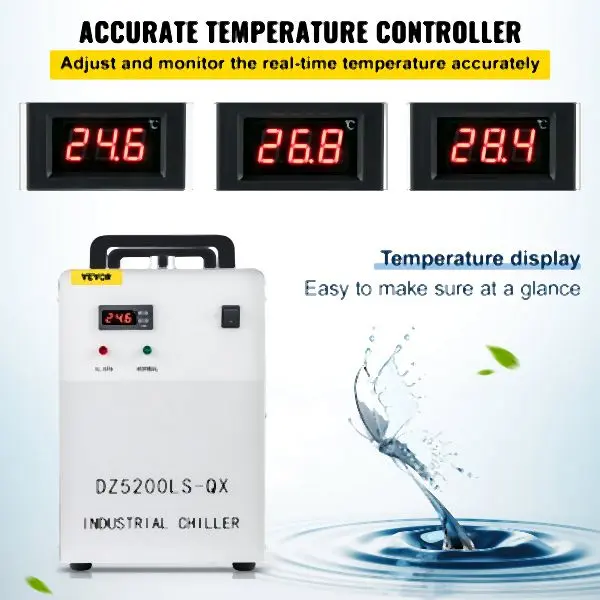

• Precise Thermostat: This CNC machine industrial chiller equips an accurate temperature controller. You can adjust and monitor the real-time temperature accurately to ensure the working state of the machine.

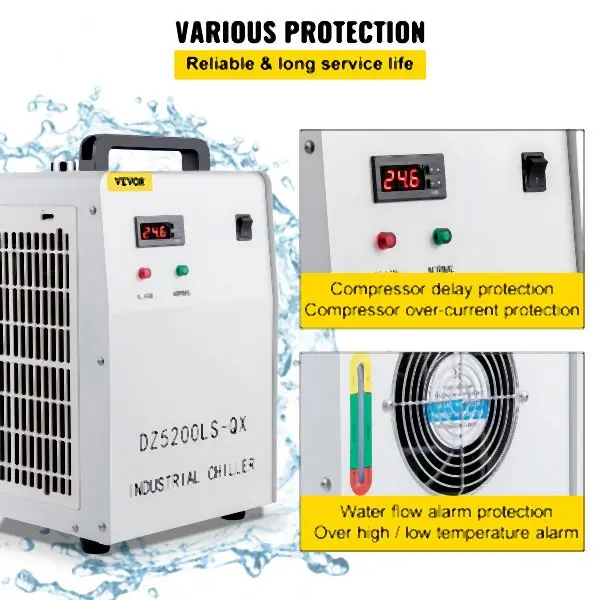

• Multiple Alarm Functions: This laser engraver water chiller has various protection, and early warning functions water flow alarm protection, high/low temperature alarm, compressor delay protection as well as compressor over-current protection. These measures can protect the machine from overheating and extend its service life.
• Easy to use Handle: Rubber handles are super durable and reliable. The ergonomic design creates it very comfortable to hold, saving time and effort as well as improving the working efficiency.

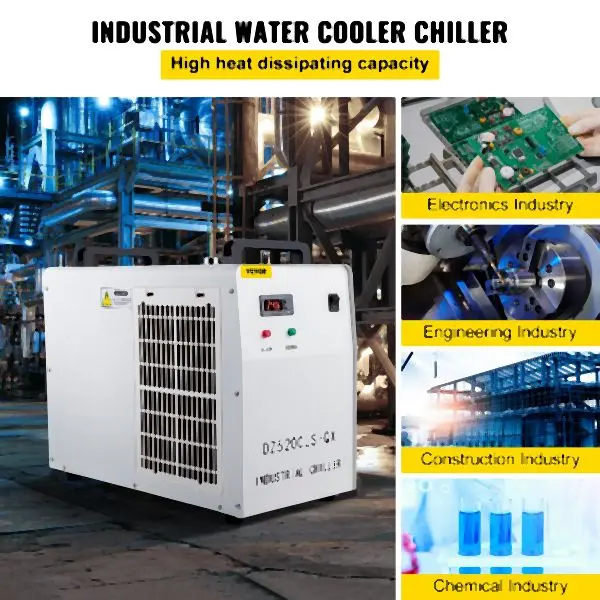

• Wide Application: CW-5200 Series is a professional cooling machine, simple to install and operate, compact, and easily movable. It is designed for cooling the one CO2 glass laser tube under 130W/150W of the laser engraving and cutting machine.

Package Content

• 1 x CW-5200DG Water Chiller Machine
• 1 x Power Cable
• 2 x Sealing Washer
• 1 x Spare Futilize
• 1 x User Manual
• 1 x Alarm Indicational Output Plug

Technical specs

• Refrigerant Charge: 11.6-12.3oz / 330-350g
• Refrigerant: R-410a
• Inlet and Outlet: External Ø0.4in / 10mm Nylon Connector
• Pump Power: 48W
• Compressor Power: 0.75KW, 0.75HP
• Frequence: 60Hz
• Packing Dimensions: 28.3 x 17.3 x 24.4 in / 72 x 44 x 62 cm
• Product Size: 22.4 x 11.02 x 18.5 in / 57 x 28 x 47 cm
• Tank Capacity: 1.6 Gallon / 6 L
• Precision: ±32.54°F / 0.3°C
• Voltage: 110V
• Model: DZ5200LS-QX
• Refrigerating Capacity: 5186Btu/h, 1.52KW, 1307Kcal/h
• Reducer: Capillary
• Maximum Flow: 3.17 Gal/min (12L/min)
• Current: 4.5~7A
• Protection: Over Current Protection for compressor, Over-Flow & Over-Heat Alarm
• Maximum Pumping Lift: 13.1 Yards / 12 m
