VEVOR 3/4″ x 300ft PEX Tubing Coil Pipe for Htg/Plbg/Potable Blue, PEXG300FT3-4DCLS1V0, 609832143840
Non-Barrier PEX Tube
Non-barrier PEX tubing is utilized for residential and commercial hot & cold water plumbing applications. Can also be utilized for open loop radiant floor heating system to share water temperature between: -47℉ to 230℉. PEX pipe features 300FT length, 3/4″ standard size, good pressure ratings etc. Easy to install and has good flexibility to suit different occasions.
- Qualitys, Certifications & Approvals
- ASTM F876: Quality specification for crosslinked polyethylene (PEX) tubing.
- ASTM F877: Quality specification for crosslinked polyethylene (PEX) plastic hot- and-cold-water distribution systems.
- ASTM F2023: Quality test method for evaluating the oxidative resistance of crosslinked
- polyethylene (PEX) tubing and systems to hot chlorinated water.
- CSA B137.5: Crosslinked polyethylene (PEX) tubing systems for pressure applications.
- 3/4″ PEX Tube: Commercial-grade pex tubing, crack-resistant, leakage-proof and anti-aging after long year’s utilize. Nominal Diameter: 3/4″; Tube Length: 300ft, longer than normal products.
- Leakage-Proof Pipe: Made of non-toxic PEX material, resistant to high temperature or cold weather. No leakage worry, dual utilized as radiant heating tube or potable water pipe.

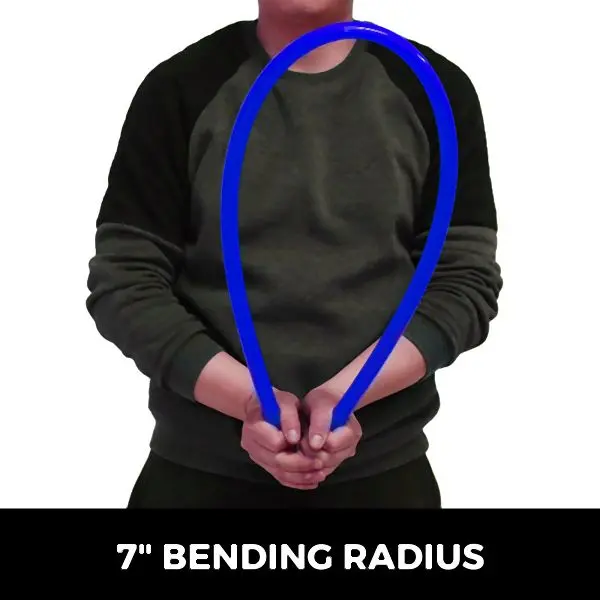

- 7″ Bending Radius: Expands and shrinks with temperature alters and back freeze resistant, this 3/4 inch PEX tubing is with min.7″ bending radius(industry standard) and excellent flexibility.
- Various Tube Connection: This pex tubing 3/4 can be connected in many ways: Crimp connection system(crimp tool + rings + fittings).; Cinch (clamp) connection system; Press system(by Viega); Compression PEX Fittings.

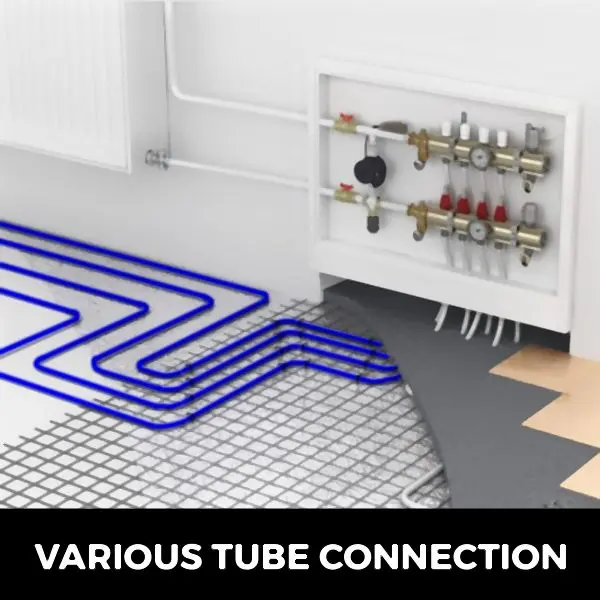

- Different Setup Ways: Pex 3/4 is suitable for many floors, like: (non-) structural concrete slabs; staple-up (between joists) radiant floor heat; “Sandwich” type radiant heating; Snow & ice melting systems etc.
- Wide Application Places: Multi-utilize water pipe, applied for plumbing, radiant & hydronic systems, and potable water. Keep quick hot & cold water flows. Blue color just for easier identification.
Package Content
- 1 x 300ft PEX Tube
Technical specs
- Total Length: 300FT
- Type: PEX Tube(Non Oxygen Barrier)
- ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications)
- UPC listed by IAPMO
- Inside Diameter: 0.66″
- Temperature Range: -45 to 110°C(-47°F to 230°F)
- Min.Bending Radius: 7″
- Nominal Diameter: 3/4″
- Outside Diameter: 0.86″
- SDR-9 dimensional standards
- Pressure Rate: 188-217psi at 20°C; 101-108psi at 95°C
- Tube Thickness: 0.1″
