VEVOR Precision-Engineered AN8 Fitting Stainless Tool Steel Nylon Braided Oil Fuel Hose Line Kit, AN8YGTJ0000000001V0

VEVOR AN8 Fitting Stainless Steel Nylon Braided Oil Fuel Hose Line Kit, AN8YGTJ0000000001V0, 601285885889

8AN Steel Nylon Braided Oil Fuel Hose Line Kit

This hose line fitting kit with 6an standards size, 20 pieces hose ends and 32.8ft braided fuel line. High-quality to other fuel line kits in the market in standing heat and extreme circumstances. Fully equipped for all kinds of applications.

• High-quality Oil Fuel Line
• Flexible & Long-lasting
• 8AN Quality Dimension
• 20 Pics Hose End Kit

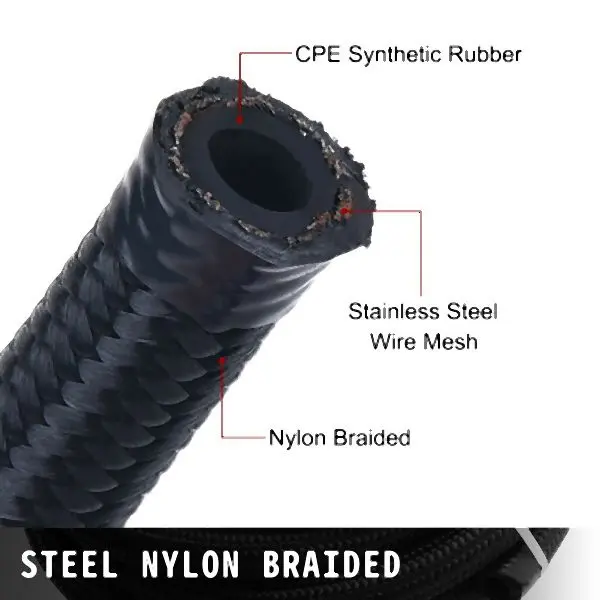

• Steel Nylon Braided: Our nylon braided hose consists of a synthetic-nitrile inner tube with a stainless steel reinforcement inner braid. Besides, there is a heat-resistant nylon sheathing (up to 350 ℉), enabling the hose to handle any fuel.

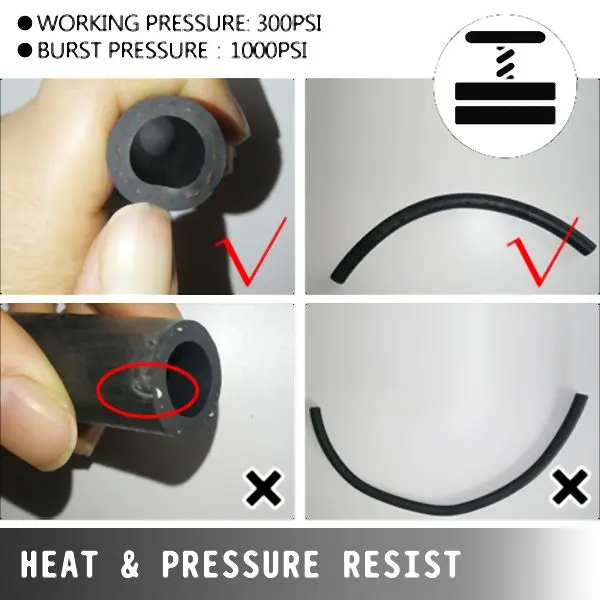

• Heat & Pressure Resist: Built with a seamless extruded rubber tube as a liner, it has excellent resistance to heat, pressure, and bending, resilient in folding and compressing. Working temp: -40 ~ +350 ℉.

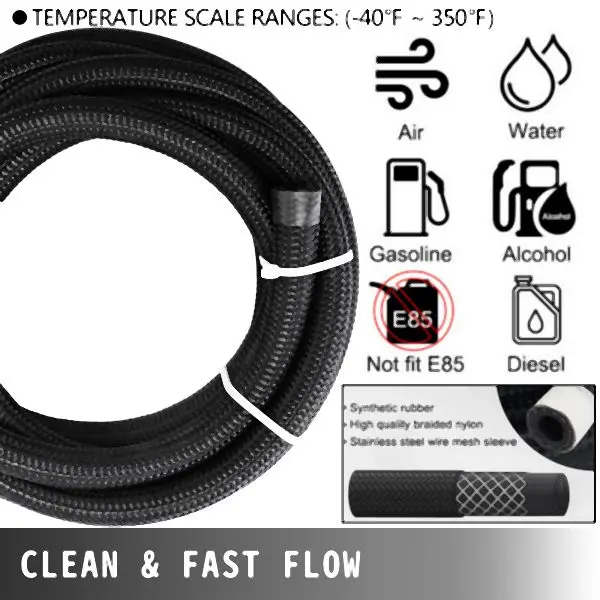

• Clean & Fast Flow: The inner tube is smoothing and non-sticky, thus viscous materials can flow easily and steadily, with no worry of cling, or clogged, the constant liquid flow will be transported to the engine.

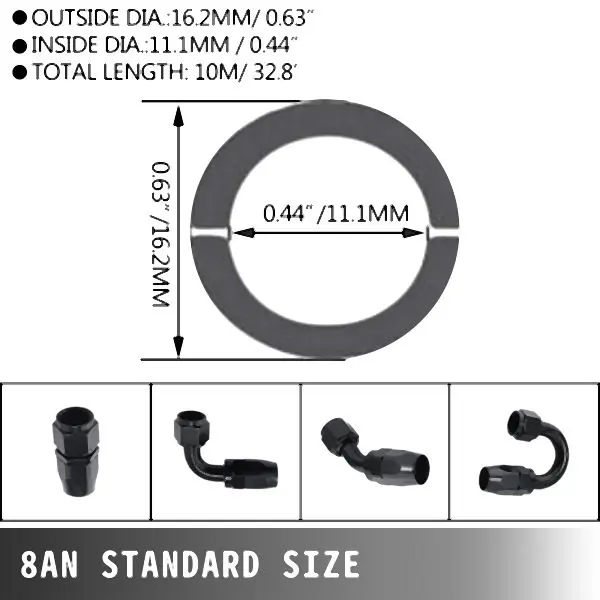

• 8AN Quality Size: Quality 8AN Size, with inside diameter 11.11 mm/ 0.44 in, outside diameter 16.2 mm/ 0.63 in. Suit for direct fitment to almost oil ports. The length of the oil line is 10 m/ 32.8ft, long enough for all kinds of usage.
• 20 Pics Hose End: The hose end is made of aluminum alloys that exceed minimum requirements for aerospace hose fittings. Each component is precisely machined to exact tolerances for highly stable performance. The Aluminum retention pins allow 360° adjustment after installation.
• Wide Application: The braided fuel line can be utilized with petrol, diesel, oil, hydraulic fluid, pump gas, alcohol, E85, coolant, fuel. Work as gas line, boat fuel line, airlift hose line, etc.

Package Content

• 8 X AN-8 Straight Reusable Swivel Hose End
• 4 X AN-8 45 Degree Reusable Swivel Hose End
• 4 X AN-8 90 Degree Reusable Swivel Hose End
• 4 X AN-8 180 Degree Reusable Swivel Hose End
• 1 X AN-8 Stainless Steel Braided Hose

Technical specs

• Burst Pressure: 1000 psi
• Product weight: 3.4 kg (7.5 lbs)
• Length: 10 m (32.8 feet)
• Inside Diameter: 11.1 mm / 0.44 in
• Color: Black
• Material: Stainless Steel & Nylon
• Max Working Pressure: 300 psi
• Outside Diameter: 16.2 mm / 0.63 in
• Application: Universal
• Working Temp: -40 ~ +350 °F (-40 ~ 176.6 °C)
