VEVOR Recyclable Hydraulic Rebar Bender 1700 Wattage Electric Rebar Bender and Cutter, 1"/25mm Max Rebar Diameter, TSGJWQJD25DWHYM01V1

VEVOR Hydraulic Rebar Bender 1700 Wattage Electric Rebar Bender and Cutter, 1″/25mm Max Rebar Diameter, TSGJWQJD25DWHYM01V1, 742521736791

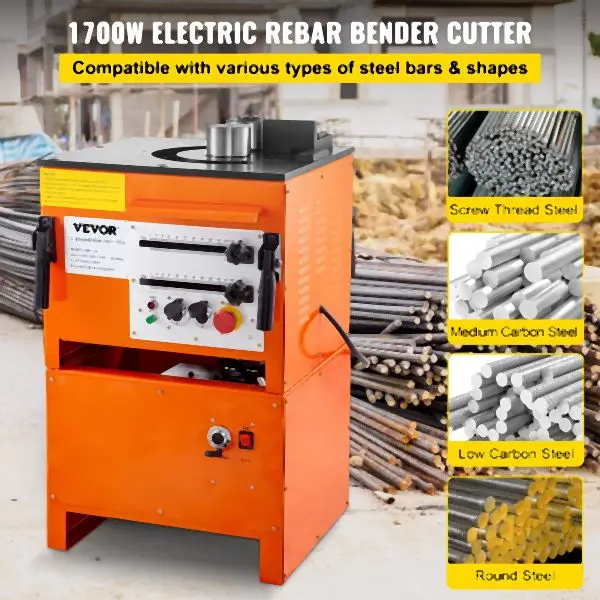

1700W Rebar Bender and Cutter Machine

1/4” to 1″ Rebar Diameter & 6-7S Bending Speed & 5-6S Cut-Off Speed

The rebar bender and cutter machine can bend 1/4”(#2) to 1″(#8) (6 to 25 mm) rebar to 0-180°in 6-7 seconds. Cut-off speed: 5-6 seconds. Two standard foot pedal control switches for hands-free bending. This rebar bender cutter is multi-purpose for buildion or all kinds of other things related to rebar, steel bar, steel rod, screw thread steel, carbon steel, round steel bending. It is ideal for manufacturers who need easy, simple-to-utilize, consistent, and accurate steel bending machines. A must-have for the professional concrete installer!

• Ultra-Fast Working Speed
• 1700W Pure Copper Coil Motor
• Angle Adjustment Knobs
• Robust Machine Body
• Easy to Operate & Transport

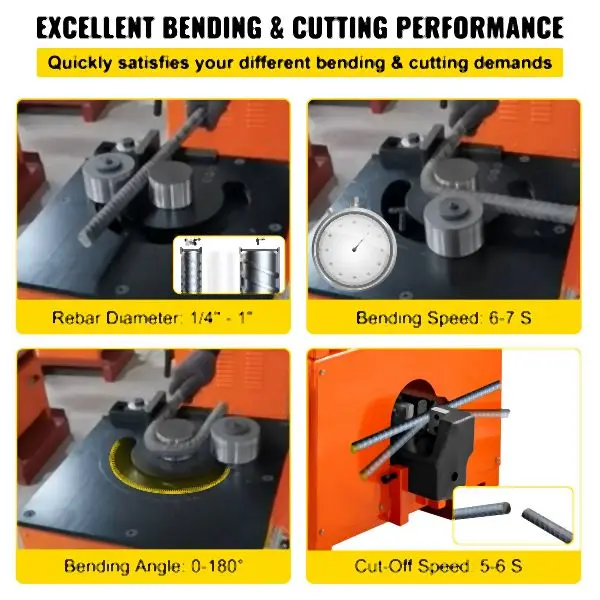

• 6-7S Bending & 5-6S Cut-off Speed: The steel rebar bender bends 1/4” to 1″ (6 to 25 mm) / 1/4” to 1-1/4″ steel super fast in just 6 -7 seconds and cuts steel in 5-6 seconds. Bending Angle: 0-180°. The bending speed depends on the thickness of the rebar and the angle you want to reach.

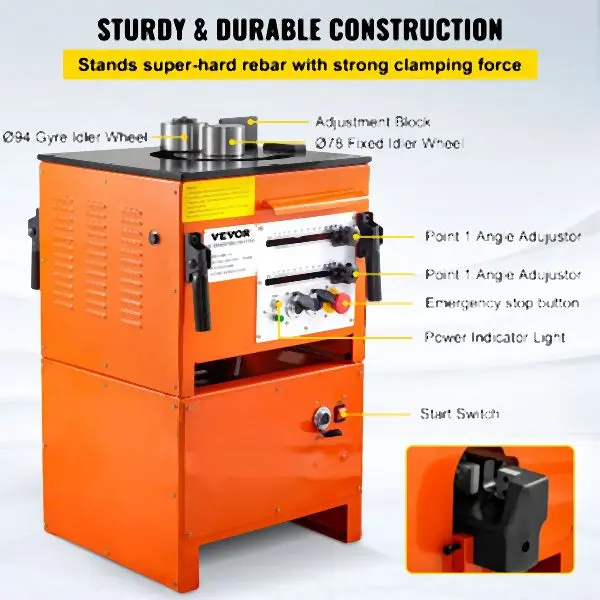

• Two Angle Adjustors: Adjust the angle you need by moving left or right, and after angle adjustment is set accurately, ensure that the angle setting handle is fixed. When you discover some abnormal during the operation, you must press down emergency stopped to close down the machine’s operation.
• Iron Idler Wheel: The high-strength Ø78 Gyre Idler Wheel and Ø94 Fixed Idler Wheel are made of iron materials, are more firm, and not easily deformed. Besides, exceeding designated material specifications greatly boosts this risk and will also damage the tool.

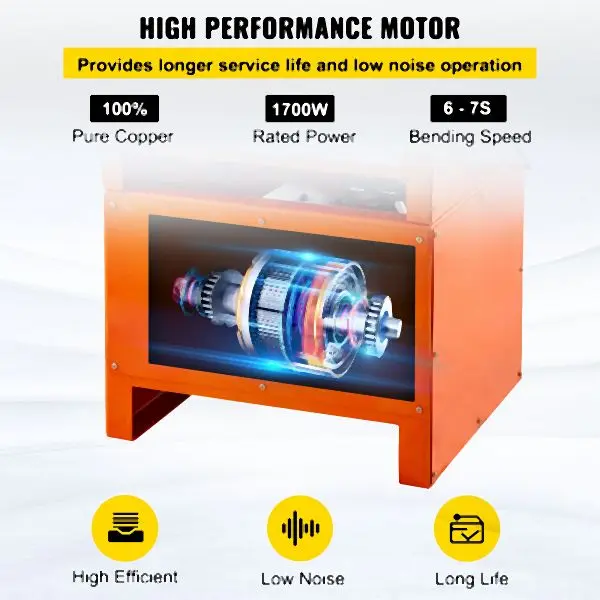

• 1700W Powerful Motor: The rebar bending machine features a 100% pure copper core high-power motor with double endurance for high conductivity, low noise operation, high-temperature resistance, and saves energy for a long time. Frequency: 60 Hz, Amps: 14A, Noise: 92 dB(A).
• Humanized Foot Pedal & Handle: The foot switch connection to point 1,2 will create it more convenient to go to work. And when pressing the starting switch or the foot switch will bend the rebar to the angle you have set. When moving the bender by fixing the handle, 4 bolts can not loose, then move the bender together by 4 handles.
• Extensive Application: The hydraulic rebar bender is widely applied in buildion engineering / bridge buildion / railway viaduct / dock highway bridges / electric power constructing. Ideal for bending rebar, steel bar, steel rod, screw thread steel, carbon steel, round steel, etc.

Package Content

• 1 x Electric Rebar Bender and Cutter
• 2 x Foot Pedals
• 3 x Tension Springs
• 4 x Carbon Brushes
• 1 x User Manual

Technical specs

• Min. Rebar Diameter: 1/4” / 6 mm #2 Grade 60
• Gross Weight: 368.17 lbs / 167 kg
• Packing Size(L x W x H): 22.44 x 18.9 x 38.58” / 57 x 48 x 98 cm
• Noise: 92 dB(A)
• Max. Rebar Hardness: HRC30
• Max. Rebar Diameter: 1″ / 25 mm #8 Grade 60
• Material: Iron
• Bending Radius: 1.57” / 40 mm
• Amps: 14A
• Item Dimensions(L x W x H): 19.69 x 17.72 x 31.1” / 50 x 45 x 79 cm
• Cut-Off Speed: 5-6 Seconds
• Bending Angle: 0-180°
• Voltage: 110V
• Hydraulic Oil Type: VG46
• Model: RBC-25
• Bending Speed: 6-7 Seconds
• Frequency: 60 Hz
• Net Weight: 299.82 lbs / 136 kg
• Application: Rebar, Round Steel, Flat Iron, Steel Bar Processing Plant, Construction Industry, Bridge Construction, etc
• Power: 1700W
• Certificate: CE
