VEVOR Regular CO2 Laser Power Provide for 150W Laser Tube Laser Engravers and Cutters, EYHTJGGDY150JHD46V6

VEVOR CO2 Laser Power Provide for 150W Laser Tube Laser Engravers and Cutters, EYHTJGGDY150JHD46V6, 197988808299

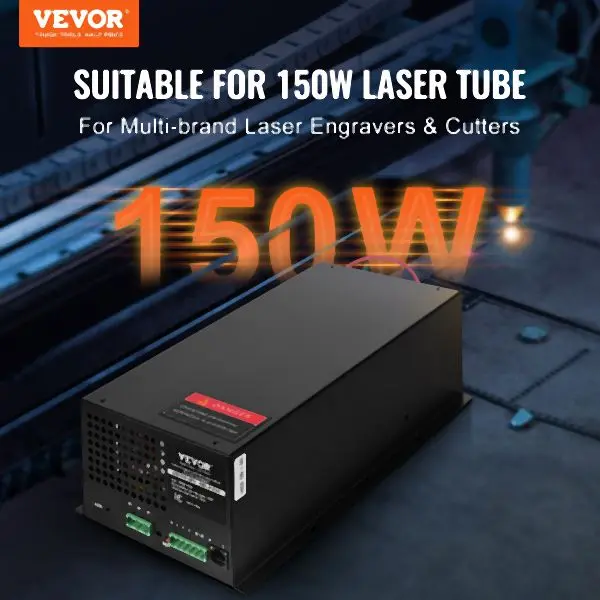

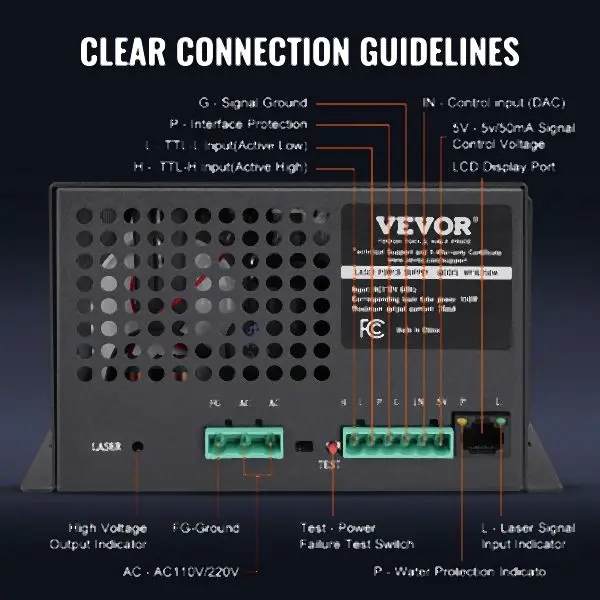

• Synergistic with 150W Laser Tube: The laser power supply specially made for laser engraving machine is perfectly compatible with different brands of 150W laser tubes, the ports are clearly marked with correplying labels, you can easily complete the connection according to the guidelines.

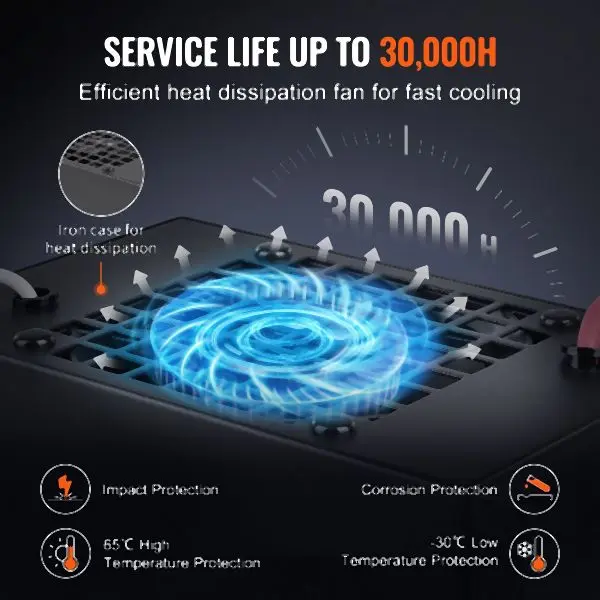

• Fast heat dissipation: The laser power supply is equipped with a built-in high-performance cooling fan, which can sustainably maintain the stable performance of the machine, reduce malfunctions, and simultaneously extend the working time, avoiding frequent power outages cautilized by overheating or malfunctions cautilized by overloading the equipment.
• Excellent Executeance: Our laser power supply unit passes 500 start/stop tests within 7 seconds, and also has ≤ 1ms response efficiency, which can maintain more than 90% efficiency, and you can utilize it in -30℃ to 65℃ surroundings again.

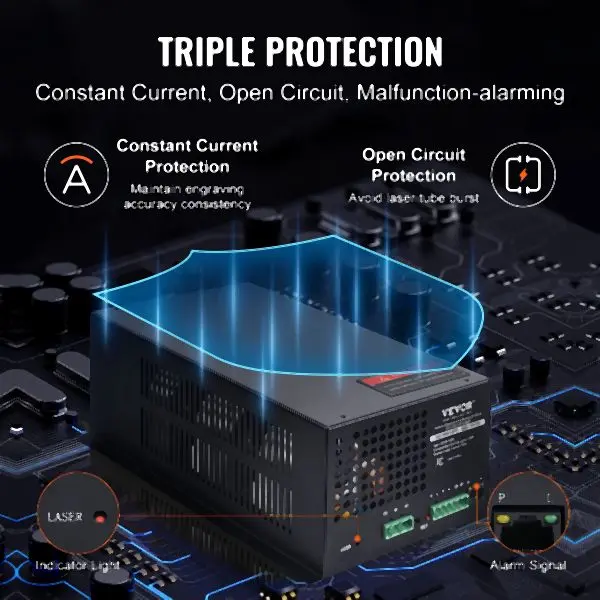

• Security Preserveion: Configuration of constant current protection and open circuit protection, constant current can ensure the consistency of the accuracy of the engravers or cutters, open circuit protection can be overloaded in the machine automatically cut off to ensure the security of the equipment, and at the identical time, to avoid the danger of bursting the laser tube.
• Long-lasting & Durable: With an average service life of 30,000 hours, the case is made of corrosion-resistant iron and durable, equipped with high-quality high-voltage packages and pure copper power tubes to provide you with long-lasting working hours.

Technical specs

• Voltage Frequency: AC110V 60Hz
• Product Power: 700W ±10%
• Input Current: 8.0A ±10%
• Operating Temperature: -30℃ to 65℃
• Safety Protection Measures: Constant Current Protection, Open Circuit Protection
• Corresponding Laser Tube Power: 150W ±10%
• Control Mode: PWM Control; Controlled via TTL levels
• Product Size: 12.01 ± 0.39 x 6.34 ± 0.2 x 3.78 ± 0.2 in / 305 ± 10 x 161 ± 6 x 96 ± 6 mm
• Color: Black
• Main Material: Iron (Casing)
• Service Life: 30000H
• Net Weight: 7.72 lbs / 3.5 kg ± 5%
