VEVOR Pex Tubing, Single Piece Per Pack, PEXG1YC300YCLS001V0, 650971613251
300 ft PEX Tubing

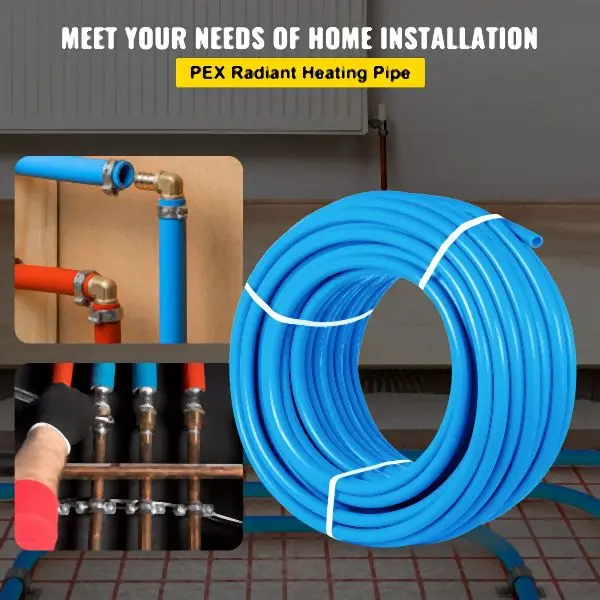

This is a robust PEX-b tubing with superb quality for home and commercial hot & cold water plumbing projects. It can be utilized as an open-loop radiant floor heating system to share water temperature between -40℉ to 203℉. Easy to install and with good flexibility to suit different needs.
- Dependable Pex-b Material
- Super Sealing Design
- Excellent Versatility
- Quick Setup & Cutter
- Qualitys, Certifications & Approvals
- ASTM F876: Quality specification for cross-linked polyethylene (PEX) tubing.
- ASTM F877: Quality specification for cross-linked polyethylene (PEX) plastic hot- and cold-water distribution systems.
- ASTM F2023: Quality test method for evaluating the oxidative resistance of cross-linked polyethylene (PEX) tubing and systems to hot chlorinated water.
- CSA B137.5: Cross-linked polyethylene (PEX) tubing systems for pressure applications.
- 1″ PEX-B Tubing: Made of industrial-level cross-linked polyethylene, this PEX piping is flexible and shares heat evenly. A smooth surface is dustproof and accelerates the heating speed to save energy.
- Non-leaking Design: Our PEX water line is resistant to a high or low temperature to avoid leakage. Dual-utilize as radiant heating tubes or potable water pipes require no maintenance after fully assembled for labor-saving.
- 7″ Bending Radius: Expanding and shrinking with temperature alters and backing freeze resistance function, this PEX pipe kit is with min.7″ bending radius(industry standard for 1″ pipe) and excellent flexibility.
- Tube Cutter & Clamps: A professional PEX tubing cutter is ideal for clean & straight cuts of 300 ft PEX tube into various lengths. Come with 3 PCs of metal clamps to assist fix the pipes, and the tightness can be adjusted randomly.
- Quick Connections: Our flexible pex hose can be connected in many ways: Crimp connection system(crimp tool + rings + fittings); Cinch (clamp) connection system; Press system(by Viega); Compression PEX Fittings. The coupler is not included.
- Diverse Use Scenarios: Suitable for many types of floors, such as (non-) structural concrete slabs; staple-up (between joists) radiant floor heat; “Sandwich” type radiant heating; Snow & ice melting systems, etc.
Package Content
- 1 x 300ft PEX Tube (Blue)
- 1 x PEX Pipe Cutter
- 3 x Steel Clamps
Technical specs
- Total Length: 300 ft/ 91.4 m
- UPC Listed by IAPMO
- Type: PEX-B Tube (Non-Oxygen Barrier)
- ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications)

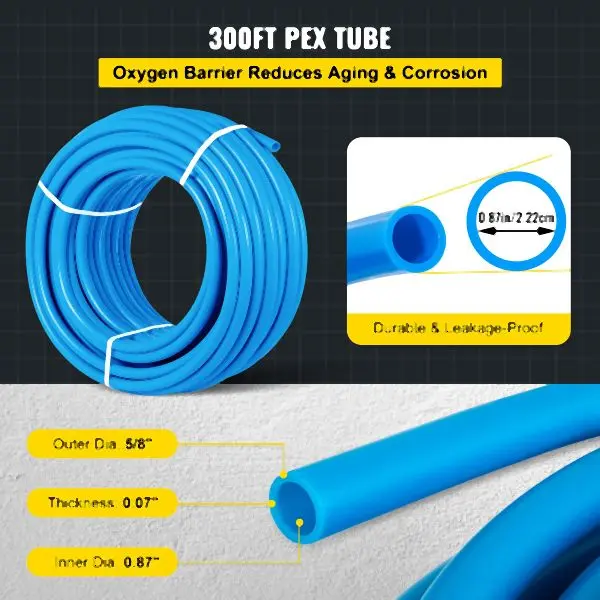

- Inside Diameter: 0.87″/2.22 cm
- Tube Weight: 50.7 lbs/23 kg

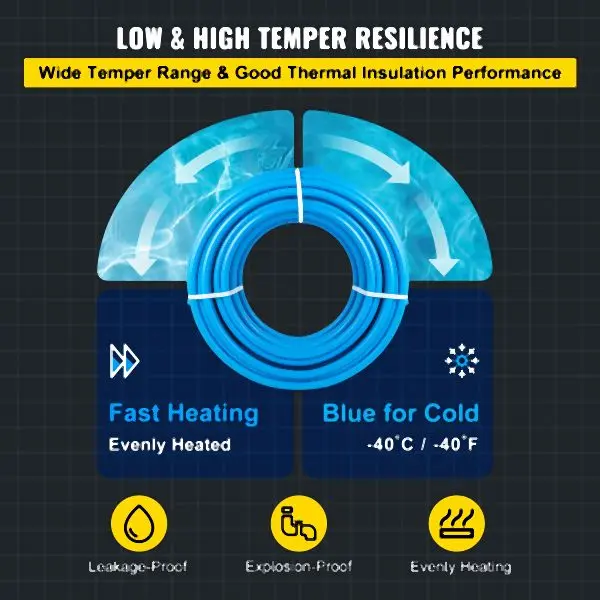

- Temperature Range: -40°C to 95°C/-40°F to 203°F
- Min.Bending Radius: 7″/17.8 cm
- Nominal Diameter: 1″/2.54 cm
- Outside Diameter: 1.13″/2.87 cm

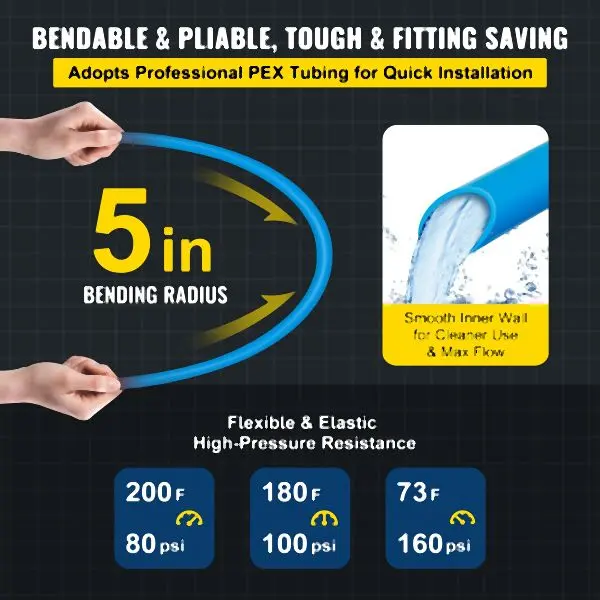

- Pressure Rate: 80 psi @ 200F, 100 psi @ 180F, 160 psi @ 73F By PPI
- SDR-9 Dimensional Standards:
